UNICLEAN SL TS

Chamber volume 4 200 and 5 600 litres
Product images are for illustrative purposes only and may differ from the actual product.
  • Chamber volume

    • 4 200–5 600 litres
  • Basic features

    • Single door or double (passing trough) door version
    • large 5.8’’ touch-screen control panel on the dirty side and large 5.2’’ touch-screen control panel on the clean side
    • Automatic sliding glass doors
    • Two dosing pumps for chemical products
    • Forced, filtered drying is achieved using a G3 class filter and HEPA H14 filter, which can be regulated according to time and temperature

UNICLEAN SL TS is an advanced floor-charged washer disinfector designed for washing and disinfection of containers, bed frames, operating tables and other large-dimension equipment and facilities in hospitals requiring washing and thermal-disinfection. Together with special charging carriages it can be used for large-volume treatment of surgery shoes and surgical instruments. For the purpose of easy installation at the client, the washer is assembled from individual modules in the final stage. Charging material in and out of the chamber is arranged using charging and transport equipment. The automatic system of floor tilting provides excellent water removal from horizontal surfaces. The device is available in single-door and double-door interlaying version.

I am interested in UNICLEAN SL TS
General Information

Basic Characteristics

  • large 5.8’’ touch-screen control panel on the dirty side and large 5.2’’ touch-screen control panel on the clean side
  • water heating using technical steam from a central steam source together with a large-volume pre-heating tank shorten the process of preheating water and therefore has a positive impact on operational cost effectiveness
  • two dosing pumps for chemical products, each with a flow meter and level sensor for convenient operation of the device
  • two separate, powerful, vertically positioned washing pumps with horizontally in-built oscillation tubes ensure optimal distribution of water pressure in the chamber
  • three-level filtration system for circulating water prolongs pump service life
  • forced, filtered drying is achieved using a G3 class filter and HEPA H14 filter, which can be regulated according to time and temperature
  • the function of all important device modules and sensors is monitored by automatic diagnostics, and any detected errors are recorded and reported, and, where necessary, the current washing programme may be stopped

Programmes

  • 5 pre-set standard washing and disinfection programmes plus 5 free memory spaces for presetting basic cycles, 50 additional programmes ready to adapt to customer specifications, as well as an additional 5 service programmes for service and validation
  • up to 24 washing phases in a programme with a wide range of possible parameter settings
  • 2 special self-cleaning programmes
  • programmes specially optimized for various types of treated products, types of contaminant or washing methods

Construction

  • stable, robust stainless steel construction of the device and external jacket (AISI 304) ensure a long service life
  • chamber, washing arms and filter tanks made of high quality steel (AISI 316 L)
  • manual stainless steel doors with glass window
  • inclined chamber floor prevents water retention inside the chamber and accelerates drainage and drying
  • rounded corners and edges of the chamber facilitate easier washing and prevent the retention of contaminants
  • tilting and flat floor system for maximum user comfort when loading and unloading the trolleys

Control Panel

  • latest generation double microprocessor control system manages and controls all device programmes and each of their phases
  • colour, 5.8’’ touch-screen display shows individual programmes, programme phase, current time and date, the control temperature and temperature regulation, the required phase temperature, the A0 value – control and regulation, remaining time of the washing cycle and any error message from the device
  • Start and Stop push buttons on the main panel of the device
  • each time the control panel is pressed a sound signal is given
  • access to cycle parameters is password protected according to ISO 15883-1 and 15883-2
  • batch documentation – connection to printer or PC (RS 232 port), or to computer network (LAN) together with the Ecosoft SW application

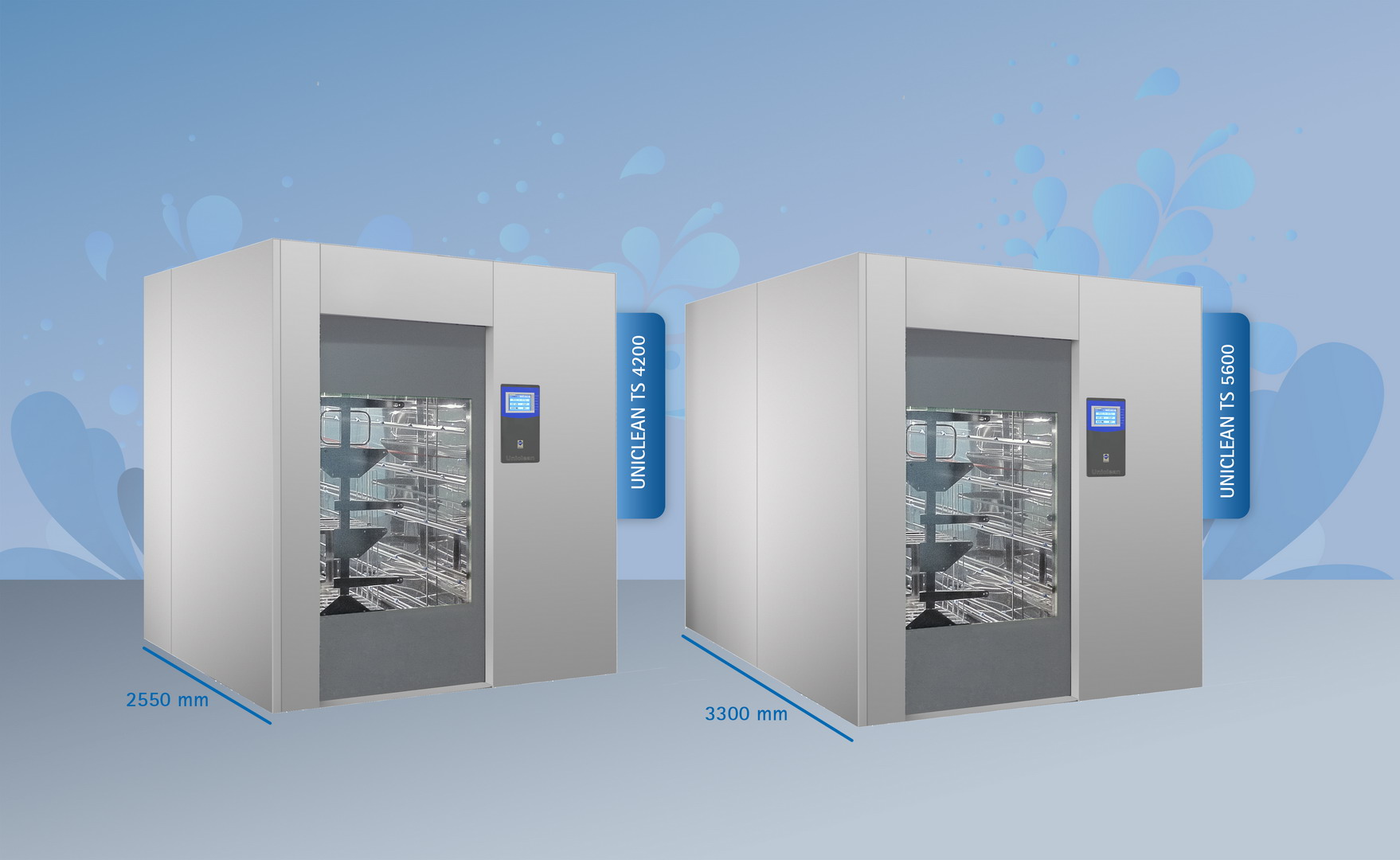

Technical Data
  • single-door version
    • UNICLEAN SL TS 4200-1
    • UNICLEAN SL TS 5600-1
  • pass-through version
    • UNICLEAN SL TS 4200-2
    • UNICLEAN SL TS 5600-2
Optional Equipment
  • Automatic stainless steel door with glass window - cheaper automatic door with comfortable handling
  • Glass door – for better monitoring of washing process
  • Direct connection of washing trolley injectors – wider application of the device
  • Loading guiding ledges made of premium steel – safer handling with carriages
  • Loading/unloading ramp, length 2 000 mm/4 000 mm (in the case that assemblage pit is not possible) – per piece - solving the installation problems
  • Gas-tight version - „Bio-Seal“ – solving the safety problems (not possible for UNICLEAN SL TS 4200-1 and 5600-1)
  • Third tank for water for the recycling system - reduction of the total programme timeby reduction of time needed for water heating in the chamber
  • Dosing pump with flow meter and level sensor – in the case of using more chemicals it is possible to extend the standard configuration
  • Electrical heating - ED - 110 kW - reduction of time needed for washing water pre-heating
  • Electrical heating - ED - 200 kW (for standard time of the process like with FD) – reduction of time needed for washing water pre-heating
  • Turbo drying (recirculation drying by recycled air) – reduction of time needed for perfect drying, power savings thanks to use of already heated air
  • Steam drying – reduction of time needed for perfect drying, power savings thanks to steam use
  • Steam condenser – cooling system (for air humidity reduction after the process finishing) – it prevents steam leakage from the washing chamber to the staff premises
  • Lighting of the chamber interior – for better washing process monitoring
  • HEPA filter for air H14 (99,99 %), a guarantee of safe machine servicing
  • Electromagnetic drain cooling valve (condensate after cooling) – in case of unsuitable waste piping it is possible to reduce the drained water temperature
  • Draining pump – reduction of cycle time and elimination of problems with installation in the case of unsuitable placement of waste piping
  • Analogue pressure sensor (pressure gauge)
  • Conductivity sensor (British version HTM 2030) – arrangement of perfect control of the process in the course of final rinsing
  • Integrated printer for documentation of processes - comfortable and transparent way of washed batch registration
  • Integrated printer for documentation of processes on clean side – comfortable and transparent way of washed batch registration (not possible for UNICLEAN SL TS 4200-1 and 5600-1)
  • Bar code reader – the appropriate washing programme is selected after bar code scanning
  • Software for remote administration - simple displaying of operation cycles, easy administration of configured devices at CSSD
  • Alternative electrical connection: 3×220 V, 50 or 60 Hz - solving the installation problems
  • Additional stainless steel lining
  • Packed in plywood box

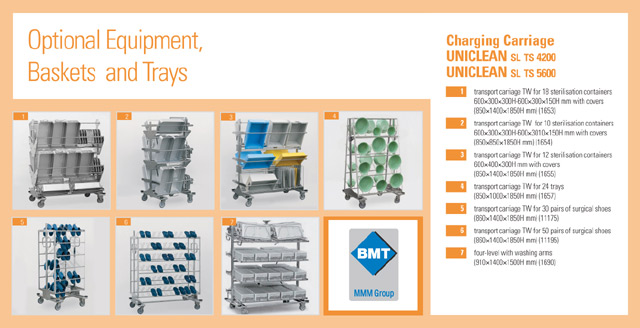

Baskets and Trays Download
