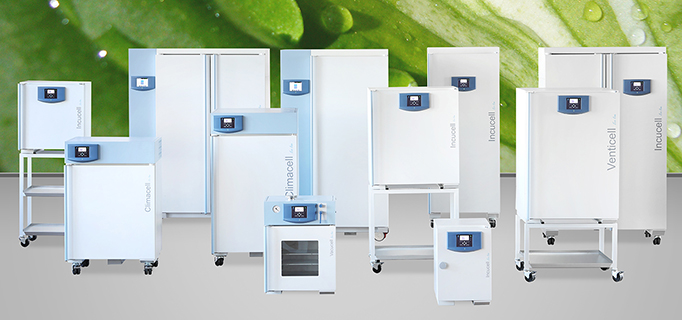

Laboratory incubators (thermostats)



High-tech systems for incubation – both heating and cooling, humidity and light control – intended for use in research, development, production, business activities, or quality control. The sectional principle that applies to the design of laboratory ovens allows a wide range of optional equipment and accessories.

The basic model is available – depending on the oven type – in volume size range from 22 to 707 liters, with either natural or forced air circulation, natural heating and cooling, controlled humidity and controlled CO2 atmosphere. The incubators are produced in two levels of operation comfort – Standard and Comfort line.

The parameters inside the unit chamber are monitored and documented with the help of a PC, using a special SW WarmComm (optional equipment).

The laboratory incubators line meets the requirements of reproducibility and accuracy of temperature distribution and other parameters in laboratory incubators, derived form such quality standards like ISO 9000 or ISO/17025.

Our laboratory incubators comply with the requirements of operation in accredited or certified laboratories.

  • Chamber volume size: 22, 48, 55, 111, 150, 170, 222, 404, and 707 liters
  • Temperature range: Form 5°C above the ambient temperature up to 99.9 °C
  • Two lines of the basic control automatics: Standard-line and Comfort-line
  • Wide range of optional equipment and accessories
  • Possibility of a printer or PC connection
  • Short delivery terms

Incubators with natural air circulation

The operation of incubator series INCUCELL is based on soft gravitation air convection in the electrically heated chamber. The devices produce no noise. The double-jacket design of the chamber together with adaptable microprocessor control unit Standard-line (on request: Comfort-line with many additional functions) ensure a homogeneous temperature profile throughout the chamber, exact process course and short recovery times (return to the required temperature) after opening the chamber door. The standard equipment of the devices INCUCELL includes also inner glass door and continuously adjustable air flap into the chamber.








INCUCELL

Suitable for safe treatment of microbiological cultures. The INCUCELL line produces no noise and provides a very soft air convection within the chamber. These devices can be used especially in biological and microbiological laboratories, duality tests in pharmacy, cosmetics and testing in veterinary medicine and food processing industry.



  • Volume: 22,  55, 111, 222, 404, 707 litres
  • Working temperature: from 5 °C above ambient temperature ap to 99,9 °C
  • Inner glas door
  • Interior:  stainles steel, mat No.1.4301 (AISI 304)

More info >>



Incubators with forced air circulation

The principle of operation is based on a patented fine air ventilation via fan in an electrically heated chamber. The patented thermodynamic system – thermal screw – ensures creation of a homogenous air stream that spirally rises inside the working chamber. Due to the natural tempering from the bottom up this process simulates nature processes and ensures both an optimal heating of materials and a high precision of the temperature profile in the chamber with minimum energy consumption. Through the system of air convection in the rear and side walls these units ensure a homogenous hot air mixture and an exact temperature profile.




INCUCELL V

Suitable for safe treatment of microbiological cultures. The INCUCELL line produces no noise and provides a very soft air convection within the chamber, the variant INCUCELL V (with a fan) has an advantage of more precise temperature distribution with small deviations. These devices can be used especially in biological and microbiological laboratories, duality tests in pharmacy, cosmetics and testing in veterinary medicine and food processing industry.

  • Volume: 22,  55, 111, 222, 404, 707 litres
  • Working temperature: from 10 °C above ambient temperature ap to 99,9 °C
  • Inner glas door
  • Interior: stainles steel, mat No.1.4301 (AISI 304)

More info >>
