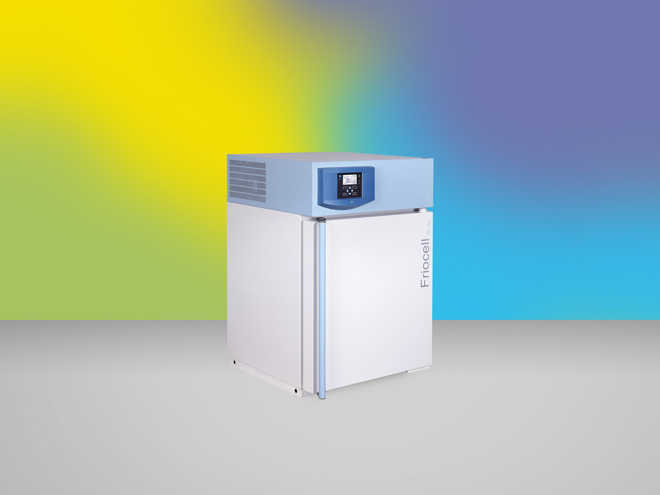

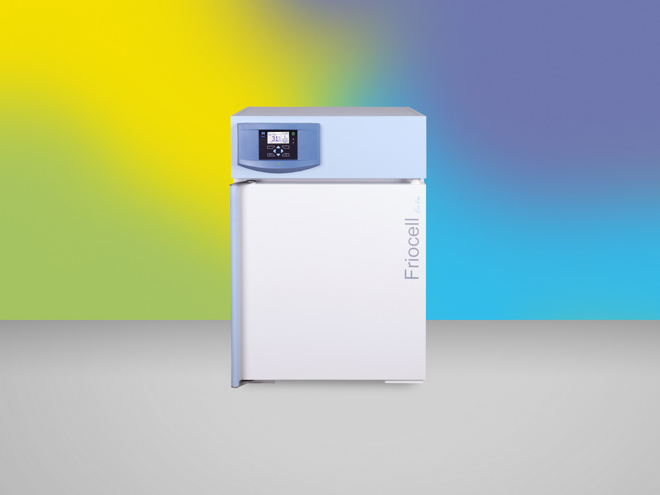

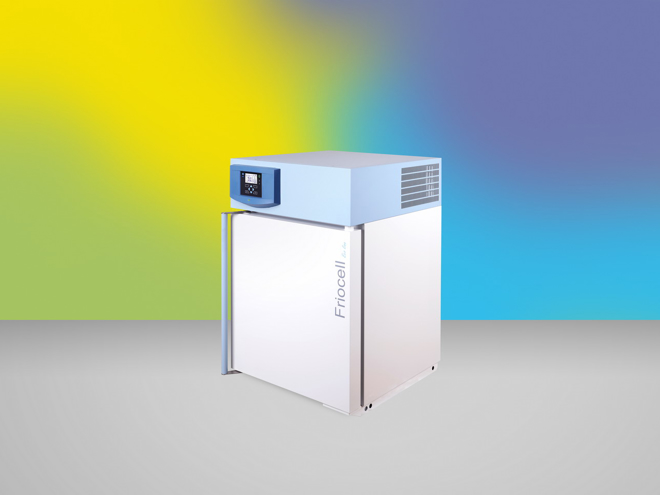

FRIOCELL 55 - ECO line

Product images are for illustrative purposes only and may differ from the actual product.
  • precise, adaptable to nature, economical - laboratory incubator
  • chamber volume 55 litres
  • temperature range: 0°C to 100°C
  • patented cooling system (ecological working medium R134a) offers accurate and fast simulation of natural processes and reduces the risk of evaporation of samples, the devices may be completed with various types of inner chamber lighting
  • high operation comfort, precise temperature control and the possibility of achieving extremely short times of temperature changes as well as short times of temperature equalization in the chamber after the door opening; standard equipment also includes inner glass door and possibility of fan speed regulation
  • suitable for demanding and accurate specimen culture testing and processes
  • wide selection of optional equipment and accessories
  • output for connecting a printer or PC
  • possibility of validation (IQ, OQ)
I am interested in FRIOCELL 55 - ECO line
Technical parameters

Inner dimensions - Chamber, stainless steel

volume 55 l
depth 370 mm
width 400 mm
height 350 mm

Volume of the steam space

89 cca l

Trays, stainless steel *)

Min. distance between trays 70 mm
number 4/2 max./usual
Storage area (w × d) 380 × 335 mm

Number of outer metal doors

number 1 pcs

Number of inner glass doors

number 1 pcs

Admissible weight of trays

together inside the oven 50 kg
per 1 tray 20 kg

Electricity data

Max. power 700 W
IP 20
mains 50/60Hz 230 V

Temperature data

Cooling/down time from 22 °C to 10 °C < 21 min
Heating/up time to 37 °C from the ambient temperature 11 min
Working temperature from 0,0 to 100 °C
Temperature accuracy - in time 0,2 ± °C
Temperature accuracy - in space at 10 °C 0,5 ± °C

Recovery time after 30 s door open

at 37 °C 5 min
at 50 °C 6 min

Heat emission

at 37 °C 55 W

Outer dimensions, incl. door and handle, Feet (N) or Rollers (K)

depth 650 mm
width 620 mm
height 875 (N) mm

Weight

brut 102 kg
nett 83 kg

Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.

Changes in the design and make reserved.
The values may differ depending on specific charge and media parameters.
