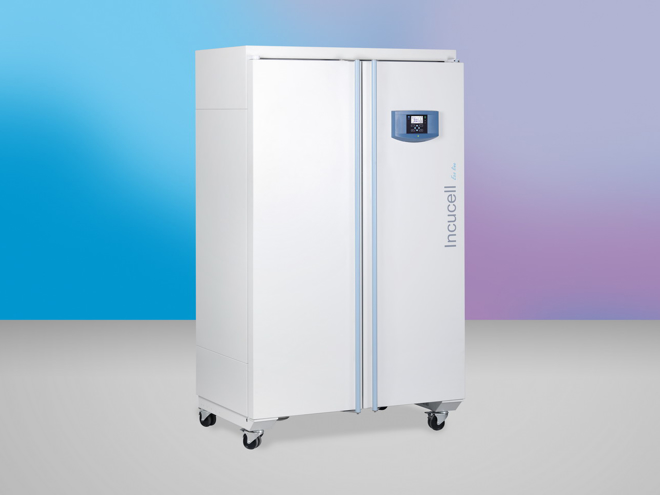

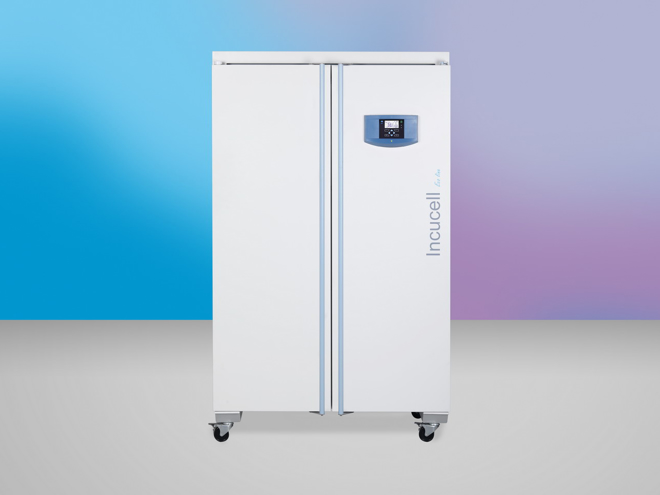

INCUCELL V 707 - ECO line

Product images are for illustrative purposes only and may differ from the actual product.
  • natural, accurate - laboratory incubator
  • chamber volume 707 litres
  • temperature range from 10°C above ambient to 100°C
  • characterized by noiseless operation and fine air flow in the usable space
  • high operation comfort, precise temperature control and short chamber temperature equalization times after the door opening
  • high-quality and safe drying, heating and tempering of common laboratory materials in laboratory and industrial areas, suitable for safe processing of microbiological cultures
  • standard version with microprocessor control system Fuzzy logic, controls placed on a foil keyboard, process information displayed on LED display
  • wide selection of optional equipment and accessories
  • output for connecting a printer or PC
  • possibility of validation (IQ, OQ)
I am interested in INCUCELL V 707 - ECO line
Technical parameters

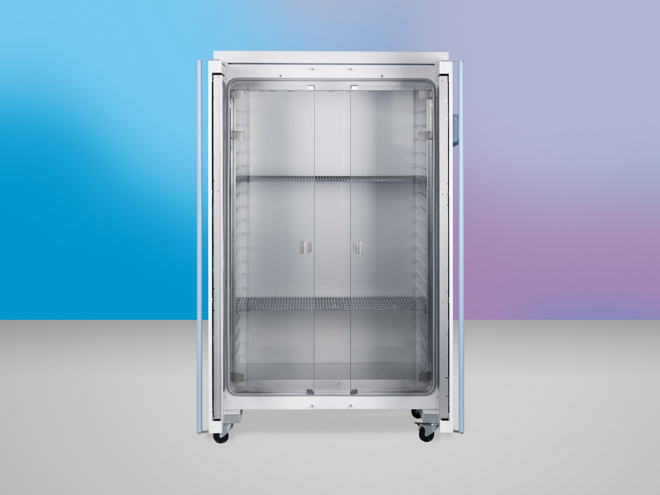

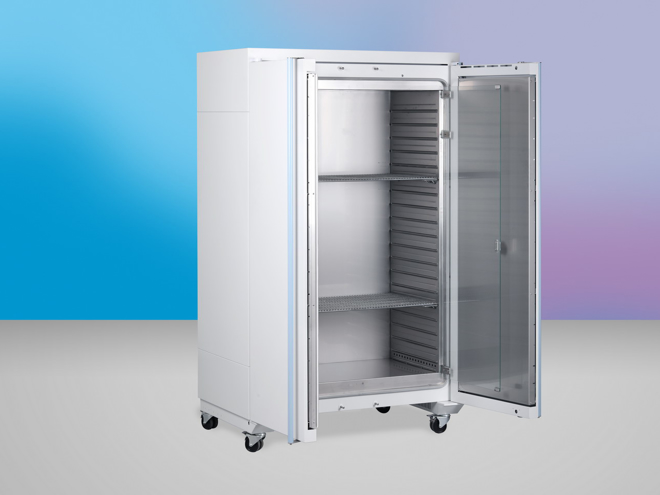

Interior of stainless steel material No. 1.4301

volume 707 l
width 940 mm
height 1410 mm

Tray

standard equipment 2 pcs
storage area (w × d) 920 × 485 mm
racks 19 max. number
distance between guide rails 70 mm

Maximal weight of the load *)

inside the oven 130 kg/oven
per tray 50 kg/tray

Door

2 pcs

External dimensions (including door and handle)

depth 790 mm
diameter of the air branch outer/inner 52/49 mm
width 1160 mm
1910 (K)

Package dimensions (three layers carton)

depth 860 mm
width 1230 mm
depth 2085 mm

Weight

brut 240 kg
nett 215 kg

Working temperature (beginning of the regulation)

from 10 °C above ambient temp. to: 100 °C

Temperature accuracy according to DIN 12 880 T2 at working temperature with closed air flap and door

time variation cca (±) <=0,2 °C
space deviation cca (±) <=1,5 °C

Time required to reach 37 °C with closed air flap and voltage 230 V

51 min

Heat emission at 37 °C

135 W

Air exchange speed at 37 °C

12 per hour

Electricity - mains 50/60 Hz

max. power 1,3 kW
nominal voltage 230 V
current 5,6 A
power by stand by 5 W

*) Approx. 50 % of the tray area can be filled in a way a uniform air circulation is enabled inside the chamber. Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.

Changes in the design and make reserved.
The values may differ depending on specific charge and media parameters.
Downloads Optional equipment
Optional equipment
  • Notice
    Product images are for illustrative purposes only and may differ from the actual product.
  • Safety thermostat class according to DIN 12880 (user adjustable)
    Separate measuring circuit protecting the process in case of failure of the main control circuit.
    Safety thermostat class according to DIN 12880 (user adjustable)
  • Chromed tray
    Chrome steel tray for optimal air circulation
    Chromed tray
  • Stainless steel tray
    AISI 304 stainless steel tray for optimal air circulation
    Stainless steel tray
  • Stainless steel shelf, perforated
    Perforated shelf made of stainless steel AISI 304, suitable for placing a small sample in the chamber. The perforated shelf replaces the tray.
    Stainless steel shelf, perforated
  • Chamber without tray holders and without trays
    Can only be used in combination with some options (higher chamber load capacity, loading system, frame, 316 L)
    (except the volume 1212)
    Chamber without tray holders and without trays
  • Test tubes holder (Loewenstein)
    Special holders for test tubes in a diagonal position, typically for TBC testing. The holders are placed on ordinary trays.
    (except the volume 22)
    Test tubes holder (Loewenstein)
  • Test tube shelf Ø 16 mm
    Special holders for test tubes Ø 16 mm stored in a vertical position
    (except the volume 22)
    Test tube shelf Ø 16 mm
  • Test tube shelf Ø 22 mm
    Special holders for test tubes Ø 22 mm stored in a vertical position
    (except the volume 22)
    Test tube shelf Ø 22 mm
  • Drip tub
    Welded stainless steel tub for collecting condensate from samples in the chamber
    Drip tub
  • Suspension system for samples under the chamber ceiling
    Suspension system for longer samples (e.g. hoses) for hanging under the ceiling of the chamber for easier drying
    (except the volume 22)
    Suspension system for samples under the chamber ceiling
  • Left door
    Door hinges on the left. The cabinet with a volume of 22, 707 and 1212 liters is not supplied in the left version.
    Left door
  • Door lock (same key for order)
    Mechanical door lock for the basic level of protection. It is supplied with two keys.
    Door lock (same key for order)
  • Door lock (different keys for order)
    Mechanical door lock for the basic level of protection. It is supplied. Within one set of devices, different lock inserts are distinguished.
    Door lock (different keys for order)
  • Automatic door lock
    The device is equipped with an electromagnetic mechanism for blocking-locking the door. Can be operated manually or automatically.
    (except the volume 22)
    Automatic door lock
  • Stainless steel shell
    Stainless steel design of the device housing, including the handle made of stainless steel AISI 304.
    Stainless steel shell
  • Flexible PT sensor
    Additional movable sensor in the chamber for measuring the temperature at the sample or in the sample. It is not used for temperature control. The additional sensor data is shown on the display as an additional temperature value. (max. 1 pc)
    Flexible PT sensor
  • Flexible PT sensor lead from the inner side of the door
    Additional movable sensor from the door for measuring the temperature at the sample or in the sample. It is not used for temperature control. The additional sensor data is shown on the display as an additional temperature value. (max. 1 pc)
    Flexible PT sensor lead from the inner side of the door
  • Access port Ø 25 mm R (centre / centre)
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 25 mm located on the right in the middle of the wall.
    Access port Ø 25 mm R (centre / centre)
  • Access port Ø 25 mm L centre/centre)
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 25 mm located on the left in the middle of the wall.
    Access port Ø 25 mm L centre/centre)
  • Access port Ø 50 mm R (centre / centre)
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 50 mm located on the right in the middle of the wall.
    Access port Ø 50 mm R (centre / centre)
  • Access port Ø 50 mm L (centre / centre)
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 50 mm located on the left in the middle of the wall.
    Access port Ø 50 mm L (centre / centre)
  • Access port Ø 100 mm R (centre / centre)
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 100 mm located on the right in the middle of the wall.
    (except the volume 22)
    Access port Ø 100 mm R (centre / centre)
  • Access port Ø 100 mm L (centre / centre)
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 100 mm located on the left in the middle of the wall.
    (except the volume 22)
    Access port Ø 100 mm L (centre / centre)
  • Access port - special shape or position
    The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Optional size, shape or position in the wall.
    (consultation required)
    Access port - special shape or position
  • Window and interior lighting (max. up to 250°C)
    Panoramic window with three-layer insulating glass enabling observation of samples in the chamber, complemented by mechanically switchable heat-resistant lighting of the chamber.
    (except the volume 22)
    Window and interior lighting (max. up to 250°C)
  • Interior lighting (no window)
    Heat-resistant interior lighting with mechanical switch.
    (except the volume 22)
    Interior lighting (no window)
  • Special housing modification for insulator technologies
    A set of mechanical modifications of the device for tight connection to the laboratory insulator.
    (consultation required)
    (except the volume 404, 707, 1212)
    Special housing modification for insulator technologies
  • Modification without particles
    Sealing of the chamber and fan to prevent particles from entering the chamber from the outside.
    (consultation required)
    Modification without particles
  • Straight chimney extension
    Extension for air outlet from the chamber for connection to external air conditioning (direct).
    Straight chimney extension
  • Chimney extension 90 °
    Extension for air outlet from the chamber for connection to external air conditioning (bent - 90 °).
    Chimney extension 90 °
  • Straight chimney extension (with condensate drain)
    Extension for air outlet from the chamber for connection to external air conditioning (direct with condensate drain).
    Straight chimney extension (with condensate drain)
  • 90 ° chimney extension (with condensate drain)
    Extension for air outlet from the chamber for connection to external air conditioning (bent - 90 °, with condensate drain).
    90 ° chimney extension (with condensate drain)
  • Automatic air flap (open / closed)
    It can be closed or opened for a given program segment. The acoustic indication takes place when the ventilation flap is opened during the program run. Applies only to devices equipped with a damper switch. Allows you to close and open the flap of the ventilation openings of the device on program basis.
    (except the volume 22)
    Automatic air flap (open / closed)
  • Version against drying-out
    The tightness of the chamber is increased, it is not possible to open the flaps of the ventilation openings, a humidifying bowl is added in the chamber and the fan is switched off when the door is opened.
    Version against drying-out
  • Modification of the device with castors for adjustable feet
    Adaptation of the device with castors to adjustable legs for greater stability.
    (except the volume 22, 55, 111, 222)
    Modification of the device with castors for adjustable feet
  • Modification of the device without castors to castors
    Adaptation for devices without castors to a device with castors for easier movement.
    (except the volume 22, 404, 707, 1212)
    Modification of the device without castors to castors
  • Castors with extendable feet (levelling castors)
    Adaptation of the device to adjustable castors for travel and greater stability.
    (except the volume 22)
    Castors with extendable feet (levelling castors)
  • Increased load capacity / reinforced chamber frame + built-in frame
    Reinforcement of the device chamber and addition of a built-in frame with its own shelves to increase the load capacity of the device.
    (consultation required)
    (except the volume 22)
    Increased load capacity / reinforced chamber frame + built-in frame
  • Increased load capacity of shelves
    Special reinforced sheet metal shelves.
    (except the volume 22)
    Increased load capacity of shelves
  • Increased load capacity of the chamber bottom
    Reinforcement of the chamber bottom to increase the load-bearing capacity of the chamber sides.
    (consultation required)
    (except the volume 22)
    Increased load capacity of the chamber bottom
  • Device table
    Mobile table in the design of the device for greater flexibility incl. shelf for storing documents.
    (except the volume 22, 404, 707, 1212)
    Device table
  • Open door alarm
    Door open notification, opening time can be set.
    Open door alarm
  • RAMPS
    Programming function allowing to set the rate of temperature rise in °C/min. Only for ECO PLUS and EVO. The ramp can be set as standard or aggressive. More in the Instructions for use.
    RAMPS
  • Aggressive heating
    Service functions allowing to increase or decrease start times. This function can change the properties of the device.
    Aggressive heating
  • ECO PLUS
    The optional extension for Eco devices expands the number of segments from 2 to 8 for one program and allows temperature ramps to be defined within the program.
    ECO PLUS
  • Internal socket max. 100°C (230 V, 3 A protection, IP67)
    Programmable waterproof socket inside the chamber for connecting appliances.
    (except the volume 22)
    Internal socket max. 100°C (230 V, 3 A protection, IP67)
  • Potential-free contact (BMS) – remote alarm 24V/1A
    The potential-free contact is connected to a connector, to which a voltage of up to 24 V / 1 A can be connected to it in the rear leg. It is used to implement a remote alarm (in Anglo-Saxon countries it is referred to as BMS relay - Building Management System relay), which is interrupted by a built-in potential-free contact relay, the fault information is transmitted to rooms other than the one in which the temperature box is located. The relay opens and switches on in all error states reported on the display.
    Potential-free contact (BMS) – remote alarm 24V/1A
  • External flap switching
    The signal for switching the external damper is fed to the relay coil behind the chamber. The relay contacts are connected to the connector in the rear leg or on the rear cover with electronics. The COM relay contact is connected to pin 2 of the connector. The NO relay contact is connected to pin 1 of the connector. The load capacity of the connector is 230 V / 10 A.
    External flap switching
  • Emergency stop button
    Hardware main switch with a lockable system, which, if necessary, interrupts the connection of electric power.
    (consultation required)
    (except the volume 22)
    Emergency stop button
  • National design of the electric plug
    Power supply termination according to the national standard
    (consultation required)
    National design of the electric plug
  • Hot-air decontamination
    Modification of the device enabling hot air decontamination of the device [190 °C]
    Hot-air decontamination
  • Possibility of flash disk connection as an external data logger
    The data logger requires the device to be equipped with a USB HOST interface, details in the Instructions for use of the device. It allows to record the time course of all measured quantities during the program run on the connected large-capacity USB device (FAT32 format). The data is saved with the selected period in CSV format. Subsequently, they can be processed by MS Excel, Access, etc.
    Possibility of flash disk connection as an external data logger
  • Analogue output 4-20mA
    The device contains a converter of the required quantity (temperature) to a 4-20 mA output, connected to a connector connection. It is not a quantity read by the instrument itself and converted to 4-20 mA. The customer processes the value himself and must also ensure the calibration of the sensors. Data cannot be collected using WarmComm.
    Analogue output 4-20mA
  • Software Warmcomm 4 Basic (B)
    WarmComm 4 is designed to record the course of device control. The program uses the Server - Client arrangement. In this configuration, the monitored devices are connected to a Server that records and stores data obtained during control. Individual users then access this data through the Client. This arrangement can be implemented within one PC or within a local network.
    Software Warmcomm 4 Basic (B)
  • Software Warmcomm 4 Professional (P)
    WarmComm 4 is designed to record the course of device control. The program uses the Server - Client arrangement. In this configuration, the monitored devices are connected to a Server that records and stores data obtained during control. Individual users then access this data through the Client. This arrangement can be implemented within one PC or within a local network.
    Software Warmcomm 4 Professional (P)
  • Software Warmcomm 4 FDA (F)
    WarmComm 4 is designed to record the course of device control. The program uses the Server - Client arrangement. In this configuration, the monitored devices are connected to a Server that records and stores data obtained during control. Individual users then access this data through the Client. This arrangement can be implemented within one PC or within a local network.
    Software Warmcomm 4 FDA (F)
  • External printer
    Use the EPSON TM-T20III to print the report.
    External printer
  • Software PrinterArchiv
    The Printer Archive program is intended for recording from the machine's print output. Serves as a direct replacement for a physical printer. The recording is in a fixed, preset format. wider options for handling the recorded protocol, including archiving or printing to a desktop PC printer. Ordinary PCs with Windows XP and higher operating software can handle the hardware requirements. One free RS 232 (COM) port is required for each connected device. The maximum length of the connecting cable is 15 m. For more detailed HW requirements, please contact your dealer.
    Software PrinterArchiv
  • Internal temperature measurement, 1 point
    Validation of the temperature distribution in the chamber at the user's reference temperature (1 point).
    Internal temperature measurement, 1 point
  • Measurement of temperature distribution, 3 points
    Validation of the temperature distribution in the chamber at the user's reference temperature (3 points).
    Measurement of temperature distribution, 3 points
  • Temperature measurement, 9-point (DIN 12880)
    Validation of the temperature distribution in the chamber at the user's reference temperature (9 points).
    Temperature measurement, 9-point (DIN 12880)
  • Temperature distribution measurement, 27-point (DIN 12880)
    Validation of the temperature distribution in the chamber at the user's reference temperature (27 point).
    Temperature distribution measurement, 27-point (DIN 12880)
  • Validation documentation
    IQOQ documentation for implementation during installation at the customer.
    Validation documentation
  • Ethernet communication port for ECO
    Optional equipment extends the communication capabilities of ECO devices with Ethernet.
    Ethernet communication port for ECO

Are you interested in INCUCELL V 707 - ECO line?

Call us, visit us or fill in the contact form and we will reply by the next working day.

Call Us
+420 545 537 111 Monday - Friday 8.00 am to 4.00 pm
We are out of office
Visit Us
BMT Medical Technology s.r.o. Cejl 157/50, Zábrdovice, 602 00 Brno View a Route on the map

Please fill in the non-binding inquiry




I am Interested in
