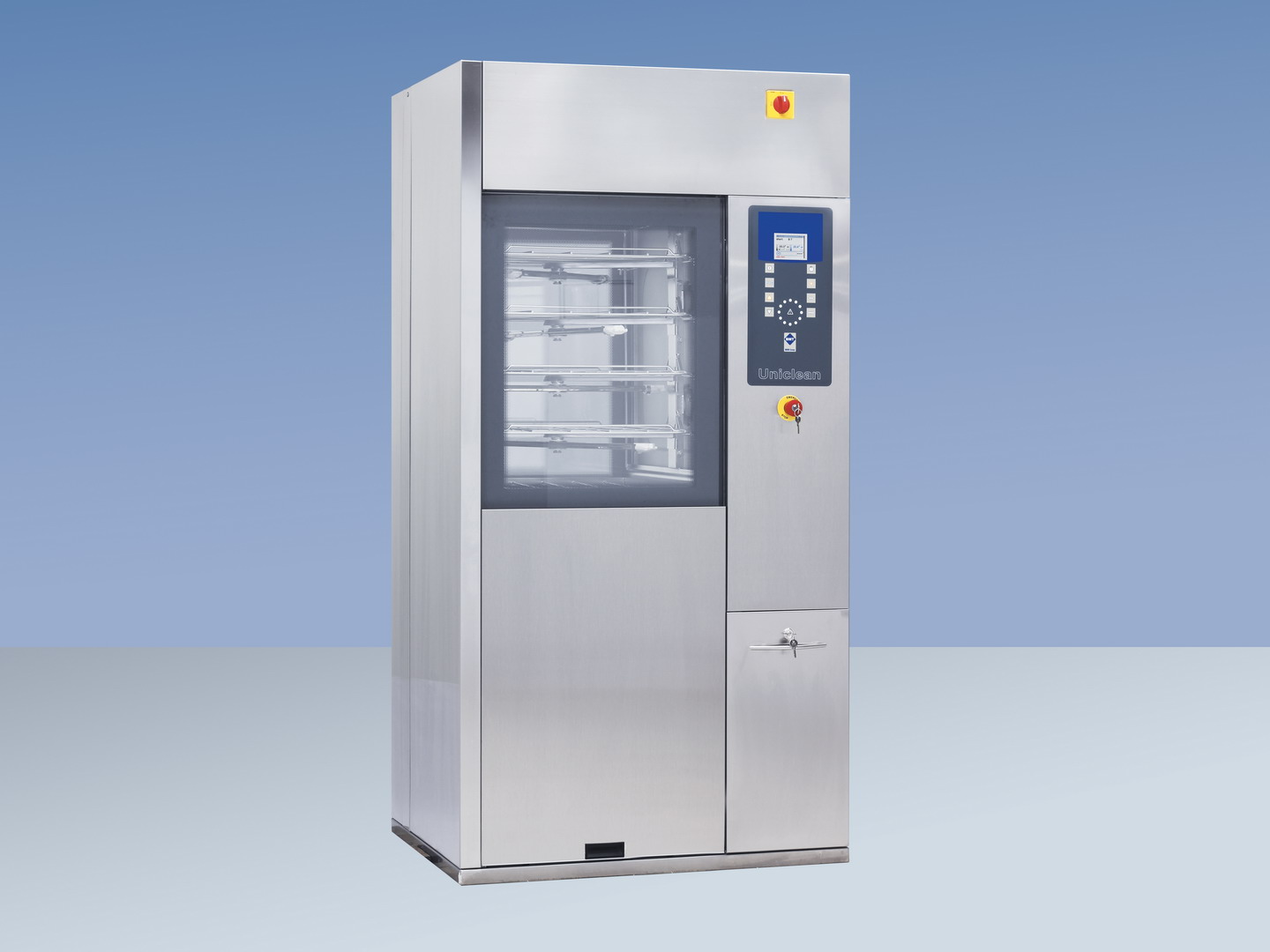

UNICLEAN SL M / MS 10

Basic Characteristics

• display type according to type of device and placement:

Device	Dirty side	Clean side
UNICLEAN SL M 10-1 *	Colour, multi-line LCD	---
UNICLEAN SL M 10-2 **	Colour, multi-line LCD	Colour, multi-line LCD
UNICLEAN SL MS 10-1 *	Colour, 5.8’’ touch-screen	---
UNICLEAN SL MS 10-2 **	Colour, 5.8’’ touch-screen	Colour, 5.2’’ touch-screen
* single-door version, ** double-door version

• electrical water heating
• connecting supplies from above (from below as option)
• washing and drying system (three-level guarantees the process achieves a perfect result)
• two dosing pumps for chemical products, each with a flow meter and level sensor for convenient operation of the device
• two separate, powerful, vertically positioned washing pumps ensure optimal distribution of water pressure in the chamber ensures high flow rate combined with effective spray pressure
• three-level filtration system for circulating water prolongs pump service life
• forced, filtered drying in chamber
• connection to printer or PC (RS 232 port) for monitoring the washing process
• integrated lockable base cabinet for storing up to three five-litre chemical containers

Programmes

• the version of the device with a colour, multi-row display for automatic control features has 20 standard washing and disinfection programmes available and 20 others ready to adapt to customer specifications
• the version of the device with a colour, touch-screen display for automatic control features has 10 standard washing and disinfection programmes available and 50 others ready to adapt to customer specifications, as well as an additional 5 service programmes for service and validation
• Direct choice of the most frequently selected programmes on the control panel:
  P1 – short cycle, suitable for lightly soiled objects
  P2 – standard cycle, suitable for normally soiled objects
  P3 – intensive cycle, suitable for heavily soiled objects

• other pre-set programmes can be accessed using the push button P+
• programmes specially optimized for various types of treated products, types of contaminant or washing methods (baby bottles, blood, BGA, microbiological, oils and petrol, thermal-chemical disinfection, enzymatic cleaning)
• two short pre-set programmes for simple rinsing of treated products with cold water or for drying already washed objects

Construction

• stable, robust stainless steel construction of the device and external jacket (AISI 304) ensure a long service life
• chamber, washing arms and filter tanks made of high quality steel (AISI 316 L)
• automatic sliding glass doors are manufactured from double-tempered glass tested against breakage, providing safety for staff and enabling the washing process to be visually checked when underway
• inclined chamber floor prevents water retention inside the chamber and accelerates drainage and drying
• rounded corners and edges of the chamber facilitate easier washing and prevent the retention of contaminants
• integrated lockable base cabinet for storing up to three five-litre chemical containers

Control Panel

• latest generation double microprocessor control system manages and controls all device programmes and each of their phases
• two types of display for automatic control features are available:
  - colour, multi-row display (UNICLEAN SL M 10)
  - colour, 5.8’’ touch-screen (UNICLEAN SL MS 10)
  - display shows individual programmes, programme phase, current time and date, the control temperature and temperature regulation, the required phase temperature, the A0 value – control and regulation, remaining time of the washing cycle and any error message from the device
• Start and Stop push buttons on the main panel of the device
• each time the control panel is pressed a sound signal is given
• batch documentation – connection to printer or PC (RS 232 port), or to computer network (LAN) together with the Ecosoft SW application
• access to cycle parameters is password protected according to ISO 15883-1 and ISO 15883-2
