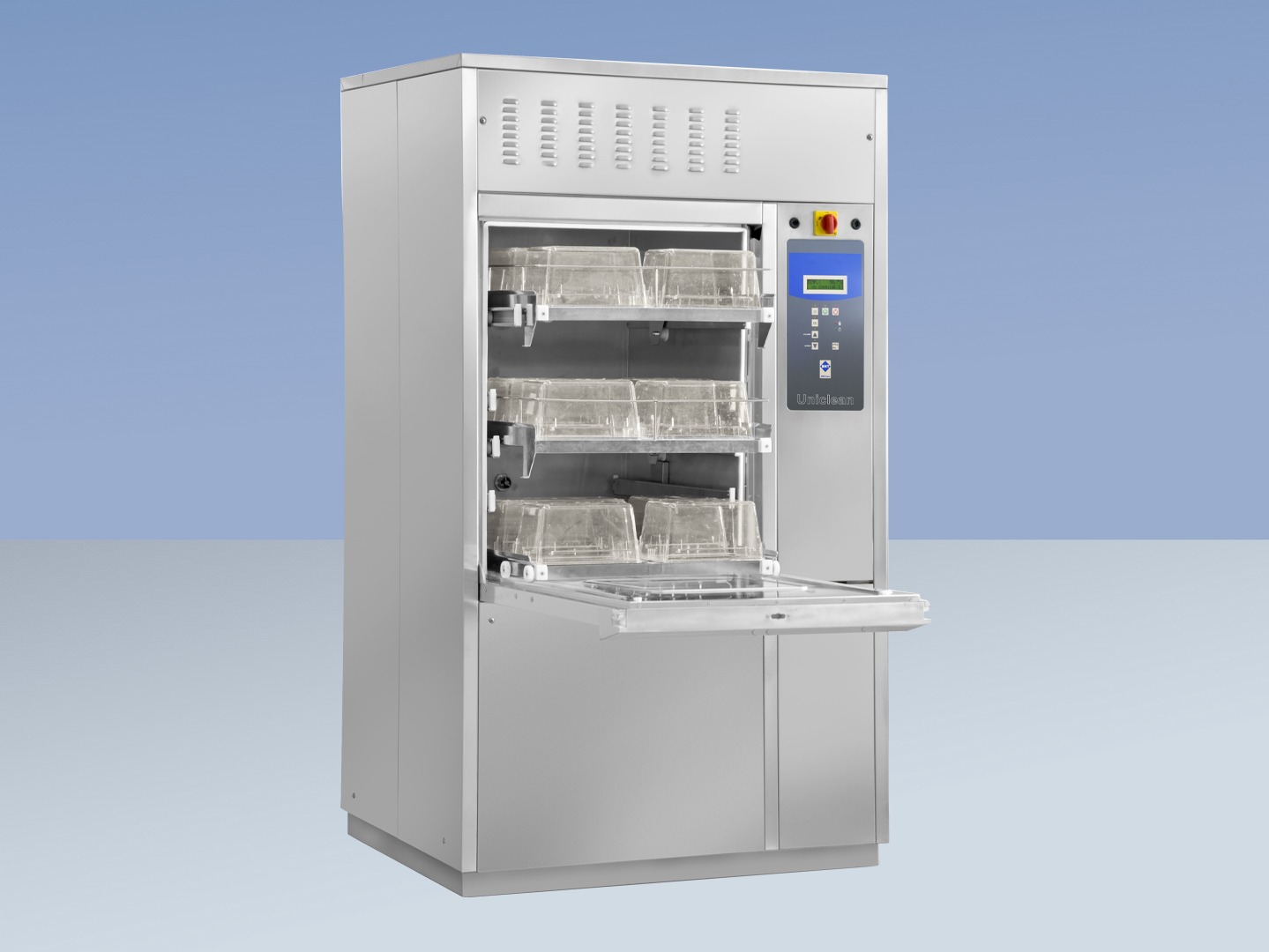

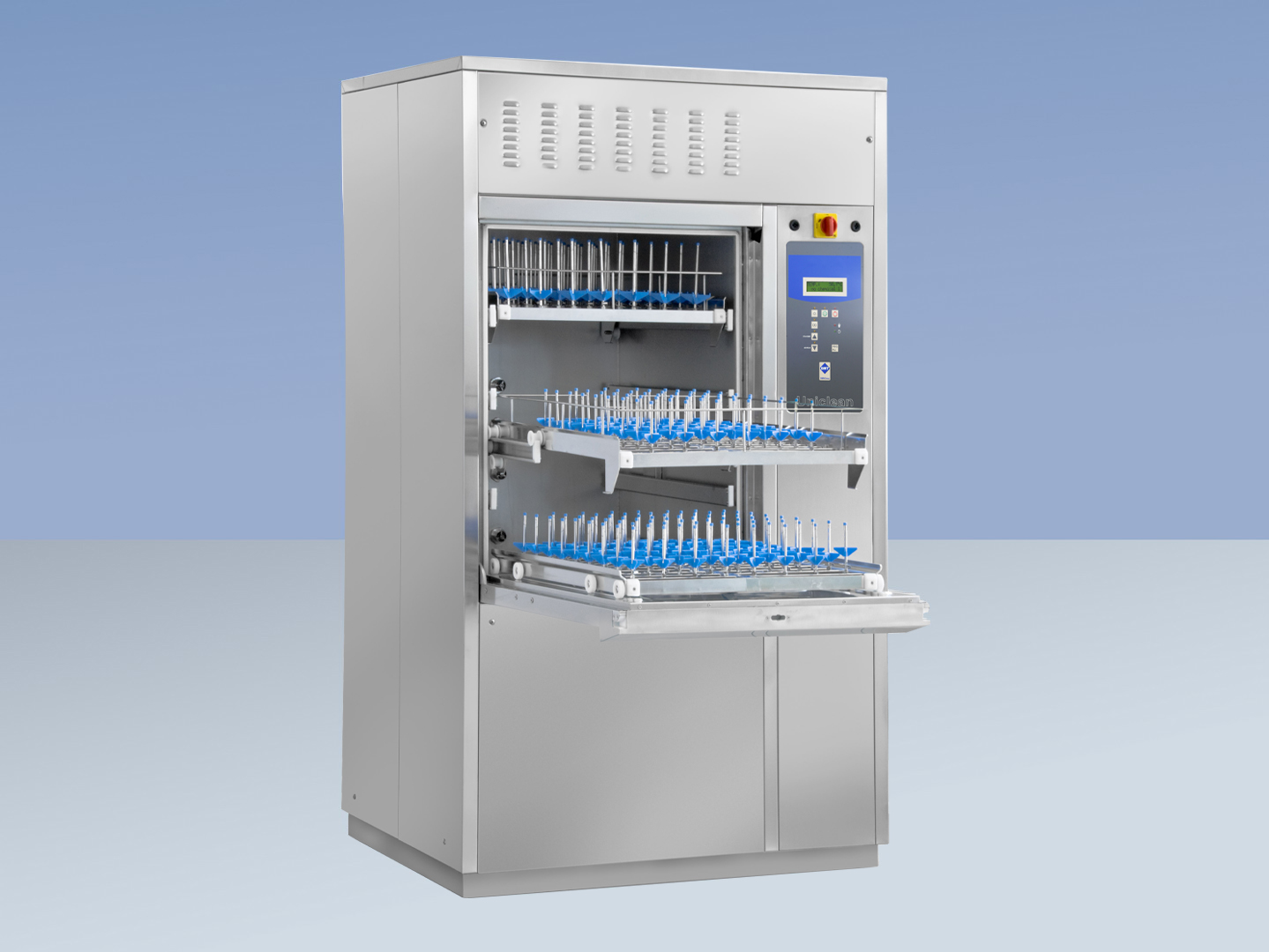

UNICLEAN SL L 600

‹ ›

Product images are for illustrative purposes only and may differ from the actual product.

Chamber volume
- 600 litres
Basket volume
- 430 litres
Basic features
- Washing and drying in five optional adjustable stages
- Multi-function colour LCD display
- Glass door of the chamber
- Two up to four dosing pumps
- Possibility of washing of up to 100 l bottles

UNICLEAN SL L 600 is a large-capacity washing and disinfection automat designed for large laboratories requiring high capacities of laboratory glass washing in everyday practice. This is a large model of disinfection washer meeting current increase requirements pun on quality of used laboratory glass treatment. Simple installation allows building into a wall as well as use as a stand-alone device.

I am interested in UNICLEAN SL L 600

General Information

Characteristics

high washing performance
washing and drying on five levels
two up to four dosing pumps
cabinet for four five-litre detergents
placement of up to 10 l jars
glass door of the chamber
possibility of building in a printer
optional steam condenser
possibility of washing of up to 100 l bottles
multi-function colour LCD display

Programs, documentation of batches

20 standard washing and disinfection programs and 20 others according to client´s specification
direct selection of the most frequently selected programs on the control panel:
P1 - short cycle, suitable for slightly polluted objects
P2 - standard cycle, suitable for generally polluted objects
P3 - intensive cycle, suitable for highly polluted objects
access to other pre-set program via the button PRG
programs developed specially for various type of treated products, types of pollution or types of washing (bottles, blood, microbiological, oils and petrol, thermo chemical disinfection, enzymatic cleaning)
two short pre-set programs for simple rinsing of treated products with cold water or for drying of already washed objects
batches documentation – connection to printer or PC (RS 232) or to computer network (LAN) together with software application Ecosoft

Structure

washing and drying in five optional adjustable stages
two washing pumps arranging efficient washing pressure in two separate washing circuits
stable, resistant stainless steel structure of the device and its outer shell of steel (AISI 304) is characterised by long service life
chamber, washing arms and filter tanks of high-quality steel (AISI 316L)
manually controlled hinged chamber door of stainless steel with glass looking window for washing process monitoring
inclined chamber bottom avoids water accumulation in the chamber and it speeds up drainage and drying
rounded corners and edges of the chamber make washing easier and they avoid impurities sticking
built-in lockable lower case for up to four five-litre detergent jars

Control panel

built-in control systems – management and control of all the programs of the device and their phases
ergonomic control panel built in the device jacket, with black and white two line LCD display, it shows the program phases, current date and time, control temperature and regulation temperature, required temperature of the phase, value Ao – control and regulation, remaining time of the cycle and possible error messages of the device
Start and Stop push buttons on the main panel of the device
Drying push button for drying phase omission in standard selected cycle
every pressing of the control panel is indicated by a sound signal
current status of the device is indicated by eight functional LED diodes on the control panel
access to the cycle parameters is protected by a password according to ISO 15883-1/2

Use

Optional Equipment

Language version (display) – other than English - standard languages of control are: English, German, Spanish
Instructions for use: other than English (if available)
Instructions for service: other than English (if available)
Steam condenser – it prevents steam output from the washing chamber to the service staff premises
Another dosing pump – in case of using more chemicals it is possible to extend the standard configuration
By flow meter for reading the control of detergents dosing - higher standard of dosed quantity control
Inner lighting of the chamber - for better washing process monitoring
HEPA filter of air H14 (spare part) – guarantee of safe device servicing
Discharge pump – reduction of cycle time and elimination of problems with installation in case of unsuitable placement of discharge piping
Water conductivity sensor – arrangement of excellent process control in the course of final rinsing
USB port - simple service and device control
Thermo printer for process documentation (for Uniclean SL L 170 external) – comfortable and well organised way of washed batch revision
Complementary stainless steel lining (price per 1 m2)
Packaging in plywood box
Remote administration software – simple displaying of operation cycles, easy administration of configured devices at CSSD
Bar code reader – the appropriate washing program is selected after bar code scanning
