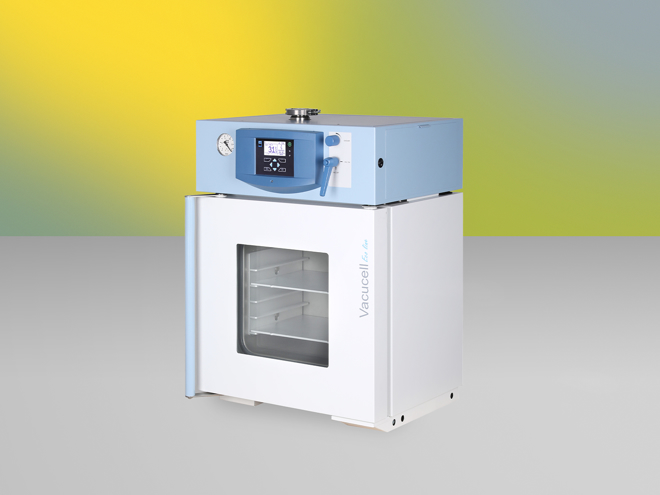

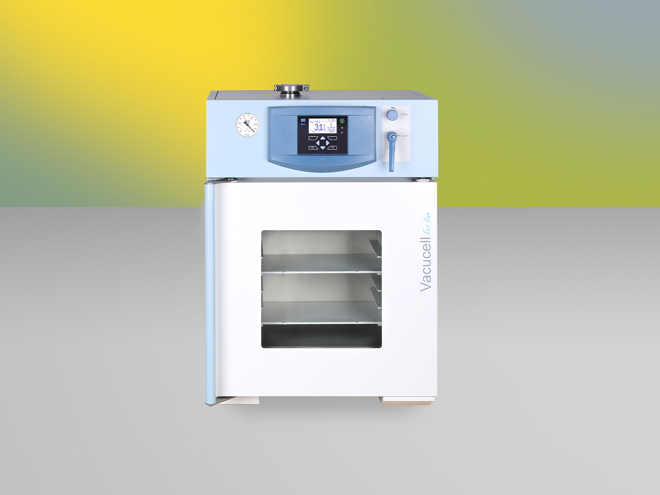

VACUCELL 22 - ECO line

Product images are for illustrative purposes only and may differ from the actual product.
  • fast, gentle, environmentally friendly - laboratory drying oven for higher demands
  • chamber volume 22 litres
  • temperature range from 5°C above ambient to 200°C
  • characterized by noiseless operation and gentle sample heating in the chamber, offering high-quality and safe heating and drying of samples up to constant weight
  • high operation comfort, precise temperature control and short chamber temperature equalization times after the door opening
  • suitable for perfect drying of thermally labile and oxidation sensitive materials, complicated shapes, drying of samples to constant weight, etc. in vacuum
  • wide selection of optional equipment and accessories (e.g. supplementing the “Vacustation” base with the option of installing a selected type of a vacuum pump,…)
I am interested in VACUCELL 22 - ECO line
Technical parameters

Interior of stainless steel material No. 1.4571

volume 22 l
depth 260 mm
width 340 mm
height 300 mm

Tray

number 2 pcs
racks max. 5 pcs

Minimal Shelves distance

height 36 mm

Usefull dim. of shelf

width × depths 280 × 236 mm

External dimensions (including door and handle)

depth 500 mm
width 560 mm
heights(incl. foots) 780 mm

Package dimensions

depth 660 mm
width 700 mm
height (incl. palette) 920 mm

Weight

brut 76 kg
net 65 kg

Working temperature (regulation start)

from 5 °C over ambient temp to 200 °C

Temp. deviations acc. to DIN 12 880 Part 2 from working temp – Al shelves pressure 5–10 mbar**

in time to: 0,4 ± °C
in space, temperature 100 °C do: 2 ± °C
in space, temperature 200 °C do: 5 ± °C

Temp. deviations acc. to DIN 12 880 Part 2 from working temp – ss shelves pressure 5–10 mbar**

i time to: 0,5 ± °C
in space, temperature 100 °C do: 10 ± °C
in space, temperature 200 °C do: 18 ± °C

Time of rise onto 98 % voltage 230 V – (Al shelves pressure 5–10 mbar)

onto temp 100 °C 60 min
onto temp 200 °C 80 min

Time of rise onto 98 % voltage 230 V – (shelves pressure 5–10 mbar)

onto temp 100 °C 130 min
onto temp 200 °C 170 min

Heat radiation

at 100 °C 150 W
at 200 °C 300 W

Vacuum connection

feedthrough needle valve for inert gas or air 8 mm
measuring acces (ISO KF) 40 mm
vacuum connection measuring DN (ISO KF) Including hose end Ø 12 mm 16 mm

Electric parameters – mains 50/60 Hz

nominal voltage 230 V
mains 50/60 Hz 0,8 kW
current 3,5 A
input in stand by mode 5 W

Max. permissible load of the shelves

inside the oven 35 kg/oven
per shelves 20 kg

Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage.

Changes in the design and make reserved.
The values may differ depending on specific charge and media parameters.
