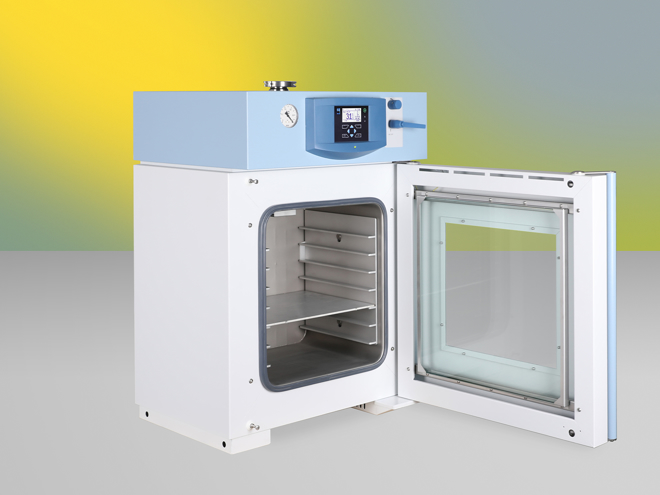

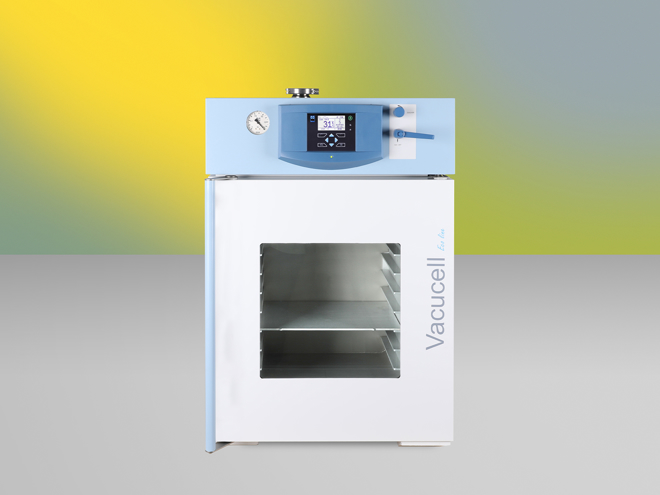

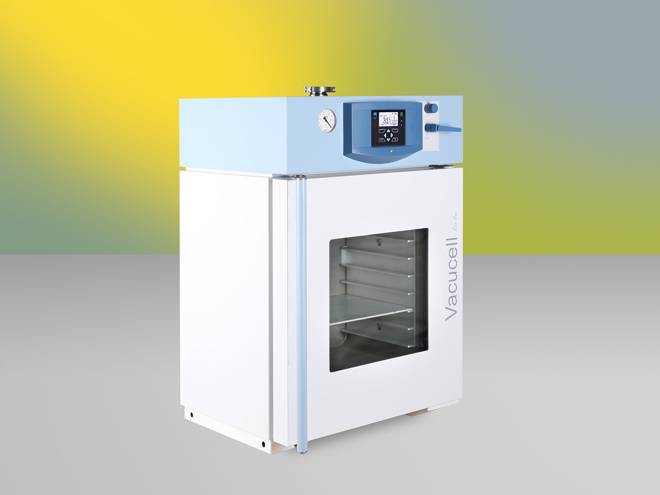

VACUCELL 55 - ECO line

The protective thermostat is used to protect the exposed material, the device itself and its surroundings in the event of an unexpected course of regulation or failure. The temperature in the chamber is measured and evaluated by an independent control block. When the limits of the protection thermostat are exceeded, the heaters are disconnected from the mains voltage and the heating of the cabinet is stopped.

Shelf made of stainless steel AISI 304, suitable for placing a small-size sample in the chamber.

Aluminum shelves guarantee fast and efficient heat transfer to the samples

Mechanical door lock for the basic level of protection. It is supplied with two keys.

Mechanical door lock for the basic level of protection. It is supplied. Within one set of devices, different lock inserts are distinguished.

The device is equipped with an electromagnetic mechanism for blocking-locking the door. Can be operated manually or automatically.

Stainless steel design of the device housing, including AISI 304 stainless steel handle

Standard chamber design made of stainless steel AISI 304
only the inner equipment of the chamber, the chamber always from DIN 1.4571/316 Ti

Optional chamber design in stainless steel AISI 316 with higher chemical resistance
only the inner equipment of the chamber, the chamber always from DIN 1.4571/316 Ti

Additional movable sensor in the chamber for measuring the temperature at the sample or in the sample. It is not used for temperature control. The additional sensor data is shown on the display as an additional temperature value. (max. 1 pc)

Rotational stainless steel access port DN 40 CF located on the back of the chamber

The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Optional size, shape or position in the wall.
(consultation required)

A set of mechanical modifications of the device for tight connection to the laboratory insulator.
(consultation required)

Sealing of the chamber to prevent particles from entering the chamber from the outside.
(consultation required)

Painted cabinet in the design of the device for placing the pump, located under the Vacucell device of the given size.
(except the volume 22)

Door open notification, opening time can be set.

Programming function allowing to set the rate of temperature rise in ° C/min. Only with ECO PLUS and EVO. The ramp can be set as standard or aggressive. More in the instructions for use.

Service functions allowing to increase or decrease start times. This function can change the properties of the device.

The optional extension for Eco devices expands the number of segments from 2 to 8 for one program and allows temperature ramps to be defined within the program.

Vacuum tight socket (nominal voltage 230 V, fuse 3 A, protection IP67) is located inside the chamber on the side wall.
(consultation required)

The potential-free contact is connected to a connector to which voltages up to 24 V / 1 A can be connected. It is used to implement a remote alarm (in Anglo-Saxon countries it is referred to as BMS relay - Building Management System relay) - i.e. a remote line that is interrupted by a built-in relay potential-free contact, the fault information is transmitted to rooms other than the one in which the temperature box is located. The relay opens in all error states reported on the display.

Hardware main switch with a lockable system, which, if necessary, interrupts the connection of electric power.
(consultation required)

Power supply termination supply according to the national standard
(consultation required)

The data logger requires the device to be equipped with a USB HOST interface, details in the Instructions for use of the device. It allows to record the time course of all measured quantities during the program run on the connected large-capacity USB device (FAT32 format). The data is saved with the selected period in CSV format. Subsequently, they can be processed by MS Excel, Access, etc.

It is used to aerate the chamber or to gasify the chamber with inert gas. For ECO only manually, for EVO it can be set automatically or manually.

The device contains a converter of the required quantity (temperature, pressure) to a 4-20 mA output, connected to a connector connection. It is not a quantity read by the instrument itself and converted to 4-20 mA. The customer processes the value himself and must also ensure the calibration of the sensors. Data cannot be collected using WarmComm.

"WarmComm 4 is designed to record the course of device control. The program uses the Server - Client arrangement. In this configuration, the monitored devices are connected to a Server that records and stores data obtained during control. Individual users then access this data through the Client. This arrangement can be implemented within a single PC, within a LAN or via the Internet or within a local network."

"WarmComm 4 is designed to record the course of device control. The program uses the Server - Client arrangement. In this configuration, the monitored devices are connected to a Server that records and stores data obtained during control. Individual users then access this data through the Client. This arrangement can be implemented within a single PC, within a LAN or via the Internet or within a local network."

"WarmComm 4 is designed to record the course of device control. The program uses the Server - Client arrangement. In this configuration, the monitored devices are connected to a Server that records and stores data obtained during control. Individual users then access this data through the Client. This arrangement can be implemented within a single PC, within a LAN or via the Internet or within a local network."

Use the EPSON TM-T20III to print the report.

The Printer Archive program is intended for recording from the machine's print output. It serves as a direct replacement for a physical printer. The recording is in a fixed, preset format. Wider options for handling the recorded protocol, including archiving or printing to a desktop PC printer. Ordinary PCs with Windows XP and higher operating software can handle the hardware requirements. One free RS 232 (COM) port is required for each connected device. The maximum length of the connecting cable is 15 m. For more detailed requirements towards HW, get information from the dealer.

Validation of the temperature distribution in the chamber at the user's reference temperature (1 point).

Validation of the temperature distribution in the chamber at the user's reference temperature (3 points).

Validation of the temperature distribution in the chamber at the user's reference temperature (9 points).

IQOQ dokumentation

Optional equipment extends the communication capabilities of ECO devices with Ethernet.
