VENTICELL IL

Sterilization and Depyrogenation in Laboratories, Pharmacy and Industry

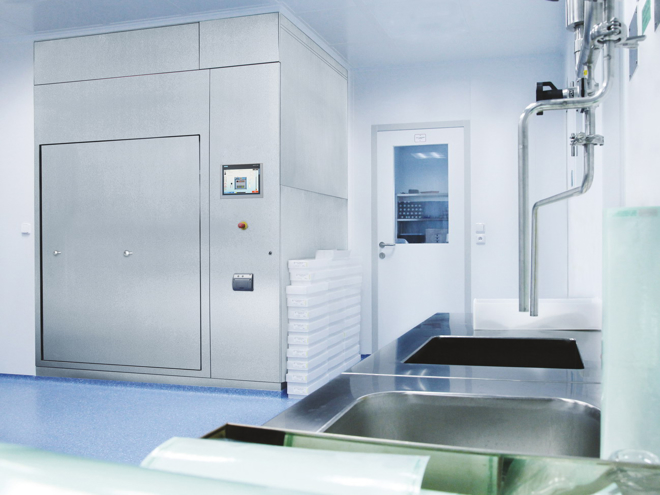

Photos VENTICELL IL
Photos VENTICELL IL
Photos VENTICELL IL
Photos VENTICELL IL
  • Photos VENTICELL IL
  • Photos VENTICELL IL
  • Photos VENTICELL IL
  • Photos VENTICELL IL
Product images are for illustrative purposes only and may differ from the actual product.

  • Chamber volume

    • 55–3 900 litres

  • Basic features

    • modular system allows variable individual device variation
    • one-door and passthrough models
    • control by means of an industrial PLC system
    • sterilization chamber, doors, device frame and jacket are made of stainless steel for easy maintenance and long service lifetime
    • double semi-automatic door lock for maximal process safety

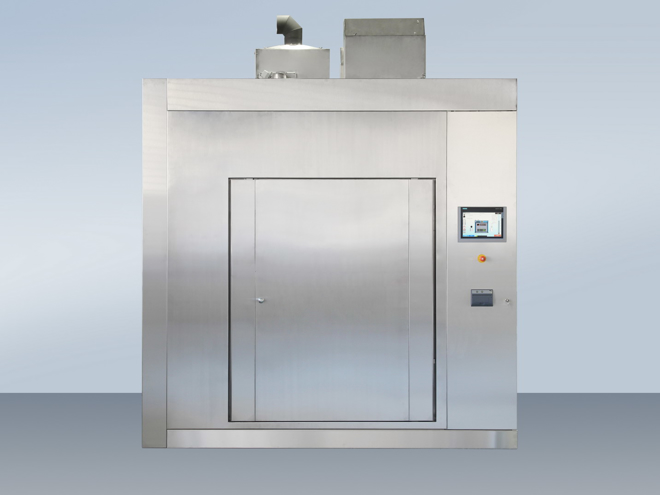

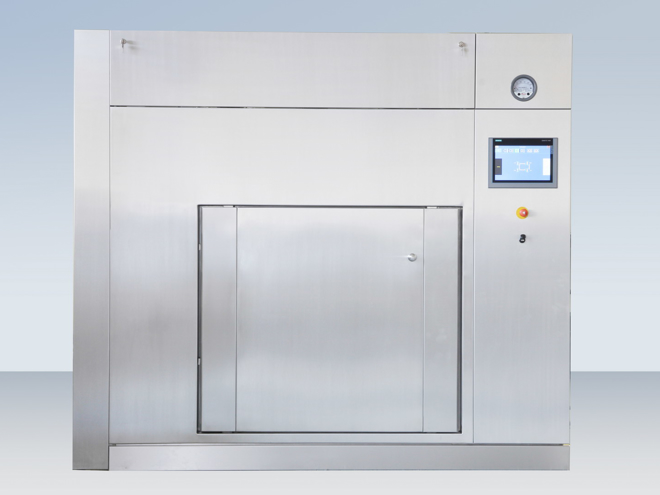

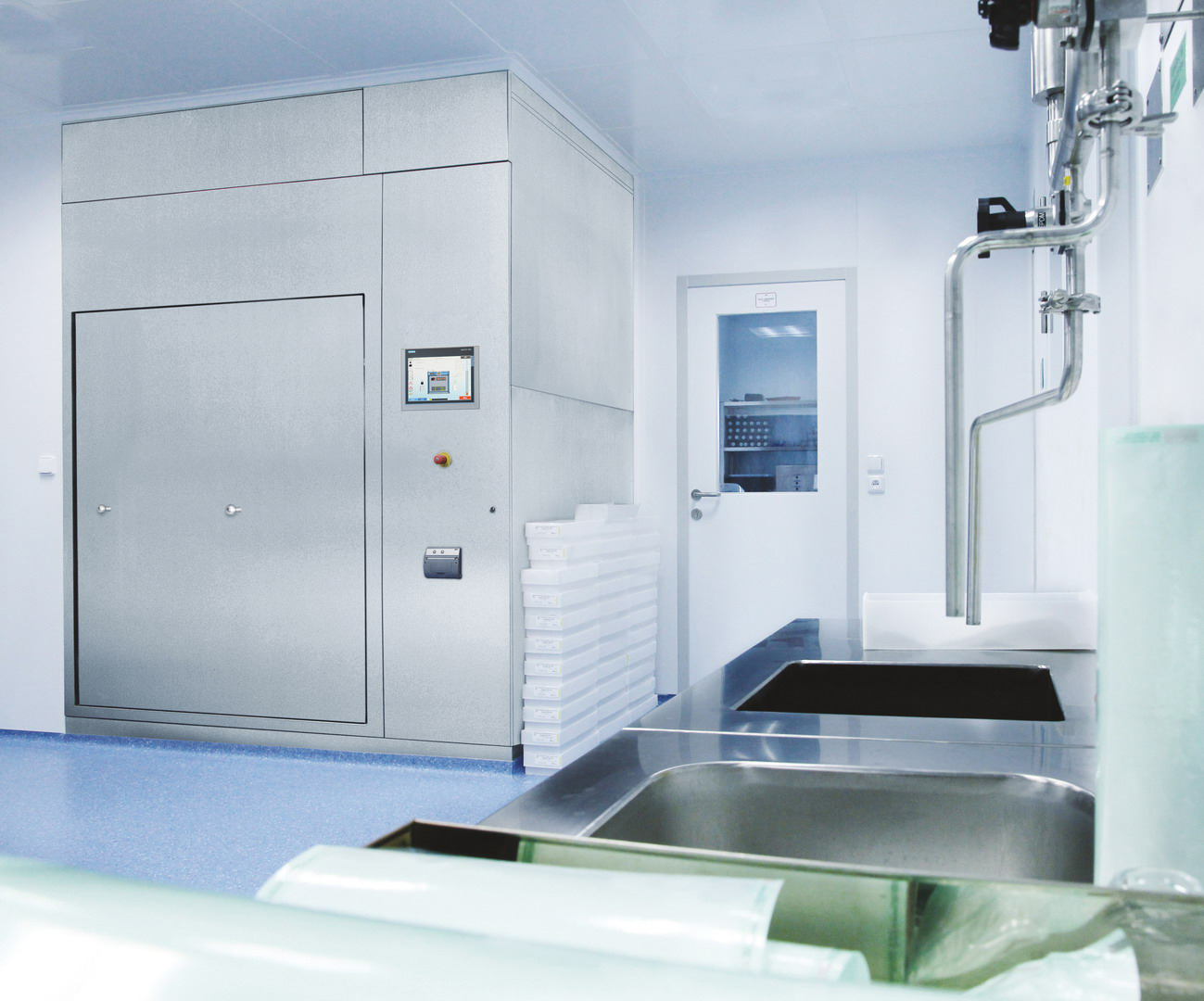

VENTICELL® IL is a series of modular large-size laboratory devices with the chamber volume of 55 up to 3 900 litres. The device is used for items sterilization at the temperature of up to 180°C, or for items depyrogenation at the temperature of up to 300°C and in optional time mode. The devices can be used in laboratories, industry, pharmacy, and research.

I am interested in VENTICELL IL
General Information
  • modular system allows variable individual device variation
  • one-door and passthrough models
  • sterilization chamber, doors, device frame and jacket are made of stainless steel for easy maintenance and long service lifetime
  • double semi-automatic door lock for maximal process safety/li>

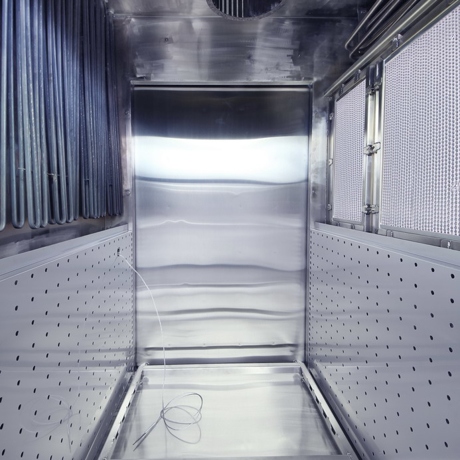

  • horizontal air flow in the chamber, powerful heating elements and highly efficient device insulation ensure short work process times and reduction of operating costs
  • control by means of an industrial PLC system
  • sterilization phase checking and recording both in graphic and numeric form in the course of the whole process
  • simple, intuitive device control by means of a touch panel with possibility of user modification of process parameters
  • various possibilities of the batch documentation processing
  • regulation of pressure inside the chamber by means of air pressure sensors in relation to sterile or non-sterile space
  • main doubled temperature sensors for independent work process control
  • auxiliary doubled temperature sensors for better process control
  • effective use of inner sterilization space

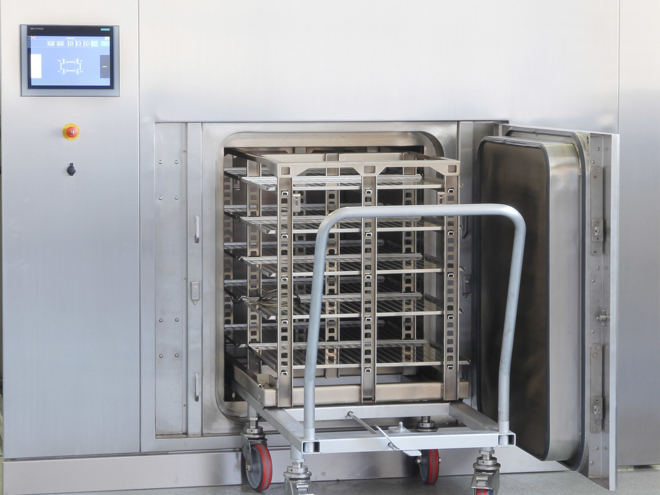

  • transport and loading system guarantees easy handling of the sterilized material by the operator
  • wide offer of optional equipment and accessories according to individual needs
Use

VENTICELL® IL is intended for thermally resistant, inflammable materials, e.g.:

  • empty glass products – glasses, ampoules, vials, bottles, vessels
  • metal materials in pharmaceutical industry – trays, containers, accessories and device parts
  • thermally stable basic pharmaceutical products and chemical substances

The device concept is based on the requirements of the standard EN 61010-2-040 and can be adjusted according to the individual needs of each worksite. The device is designed and manufactured in the certified quality assurance system in accordance with EN ISO 9001.

Sterilization and Depyrogenation

Hot-air Sterilization and depyrogenation

Sterilization is a process that ensures killing of all viable microorganisms, including spores, and which leads to an irreversible inactivation and killing of health-relevant worms and their eggs.

During the sterilization cycle, the number of Bacillus subtilis microorganisms must be reduced by at least 6 orders of magnitude. The sterilizing effect in hot air sterilizers is achieved by heating the sterilized material to high temperatures (160-180 °C).



Depyrogenationis a procedure reducing the number of bacterial endotoxins (pyrogens) by at least three orders by high temperature (250—300°C) acting for a given period of time.

Important parameters of the processes are the following ones:

  • accurate profile reached by sophisticated heated air flow system and perfect construction design of the sterilization chamber
  • quick temperature rise and cooling
  • compliance with the regulations on clean rooms
Technical data
  • single-door version
    • VENTICELL IL 3900-1 (ISO CLASS 5)
    • VENTICELL IL 2000-1 (ISO CLASS 5)
    • VENTICELL IL 1500-1 (ISO CLASS 5)
    • VENTICELL IL 700-1 (ISO CLASS 5)
    • VENTICELL IL 3900-1 (ISO CLASS 7)
    • VENTICELL IL 2000-1 (ISO CLASS 7)
    • VENTICELL IL 1500-1 (ISO CLASS 7)
    • VENTICELL IL 700-1 (ISO CLASS 7)
    • VENTICELL IL 707-1 Easy
    • VENTICELL IL 404-1 Easy
    • VENTICELL IL 222-1 Easy
    • VENTICELL IL 111-1 Easy
    • VENTICELL IL 55-1 Easy
  • pass-through version
    • VENTICELL IL 3900-2 (ISO CLASS 5)
    • VENTICELL IL 2000-2 (ISO CLASS 5)
    • VENTICELL IL 1500-2 (ISO CLASS 5)
    • VENTICELL IL 700-2 (ISO CLASS 5)
    • VENTICELL IL 3900-2 (ISO CLASS 7)
    • VENTICELL IL 2000-2 (ISO CLASS 7)
    • VENTICELL IL 1500-2 (ISO CLASS 7)
    • VENTICELL IL 700-2 (ISO CLASS 7)
    • VENTICELL IL 707-2 Easy
    • VENTICELL IL 404-2 Easy
    • VENTICELL IL 222-2 Easy
    • VENTICELL IL 111-2 Easy
    • VENTICELL IL 55-2 Easy
