CO2CELL

Incubators with Air circulation with CO2 atmosphere
Product images are for illustrative purposes only and may differ from the actual product.

Latest generation of CO2 incubators is focused on constant and reproducible conditions for cell growth procedures, tissue and other cultivating cultures. Trial circuit heating system eliminates the need of fan and consequently lowers the risk of vibrations and cross-contamination. Precise CO2 infrared sensor with high stability provides maximum reliability and measurement accuracy throughout the process. Thanks to the direct heated chamber, installation and maintenance is very easy. The inner glass door is sealed, allowing you to inspect the samples without losing the conditions in the chamber of the device. Outer glass door is sealed towards external sealing.

Range of useful options supports features like sterilization on 200°C while CO2 sensor remains inside machine, split inner glass door lowers the recovery time after door opening, Oxygen control, etc.

  • Volume: 50, 190 litres
  • Working temperature: 5°C up to 60°C
  • Non-controlled relative humidity: max 90 ± 5% RH at 37°C
  • CO2 concentration: 0,2 up to 20% CO2
  • Interior: Standard Stainless steel DIN 1,4571 (AISI 304)
  • Interior: Comfort Stainless steel DIN 1.4571 (AISI 316)
I am interested in CO2CELL

Product series description CO2CELL

Air Circulation with CO2 Atmosphere

The principle of operation is based on fine gravitation flow of operation gas in direct heated chamber at high relative humidity and selected gas concentration. The unique system of chamber and door eliminates the necessity of a ventilator and so it eliminates even related risks of mutual contamination of samples due to vibrations and forced circulation of operation atmosphere. Possible work in CO2, respectively O2 and N2 atmosphere.

Product Series Description

Latest generation of CO2 incubators is focused on constant and reproducible conditions for cell growth procedures, tissue and other cultivating cultures. Trial circuit heating system eliminates the need of fan and consequently lowers the risk of vibrations and cross-contamination. Precise CO2 infrared sensor with high stability provides maximum reliability and measurement accuracy throughout the process. Thanks to the direct heated chamber, installation and maintenance is very easy. The inner glass door is sealed, allowing you to inspect the samples without losing the conditions in the chamber of the device. Outer glass door is sealed towards external sealing.

Range of useful options supports features like sterilization on 200°C while CO2 sensor remains inside machine, split inner glass door lowers the recovery time after door opening, Oxygen control, etc.

Basic Design Components

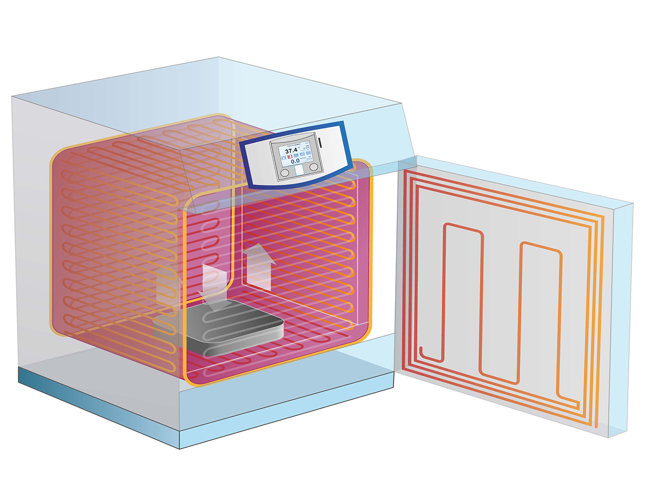

he unit chamber and door are provided with a unique temperature control system that heats every chamber wall separately. The specially located heating bodies create spiral air flow inside the chamber. Thereby a very stable and homogenous temperature profile without temperature jumps is guaranteed. That is why the unit operation does not require a fan. In this way the risk of the samples contamination is completely eliminated. Thanks to the on-line watching of all important parameters, e.g. temperature and CO2 concentration, the new control system secures very short recovery times after the door opening. By eliminating the need of a fan, there are no vibrations inside the chamber, which is very important for a top-quality cultivation of cell cultures. The rounded edges of the stainless steel chamber and the system of shelves removable without use of any tool make cleaning easier and more effective. The CO2CELL units provide an excellent ratio of inside volume/external dimensions. They can be placed both on a smaller laboratory desk and an office table. Despite their original and distinctive design they can be stacked using a reduction element. The use of an infrared sensor for CO2 detection means involvement of the latest technology in this branch. This sensor is independent on the relative humidity and has a considerably shorter recovery time than other technologies. The uncontrolled homogenous relative humidity of 95 % in the chamber prevents the drying-up of samples. The unit is also provided with a unique design that prevents condensation at another than at the specified place of the chamber and thus eliminates the undesirable contamination.

Changes in the design and make reserved.

« »
