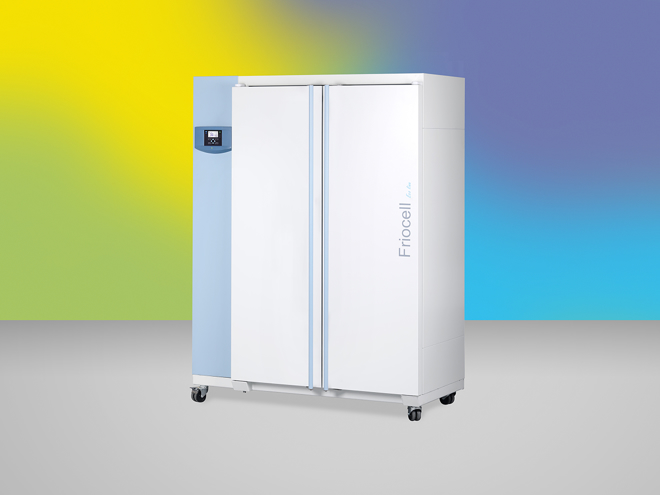

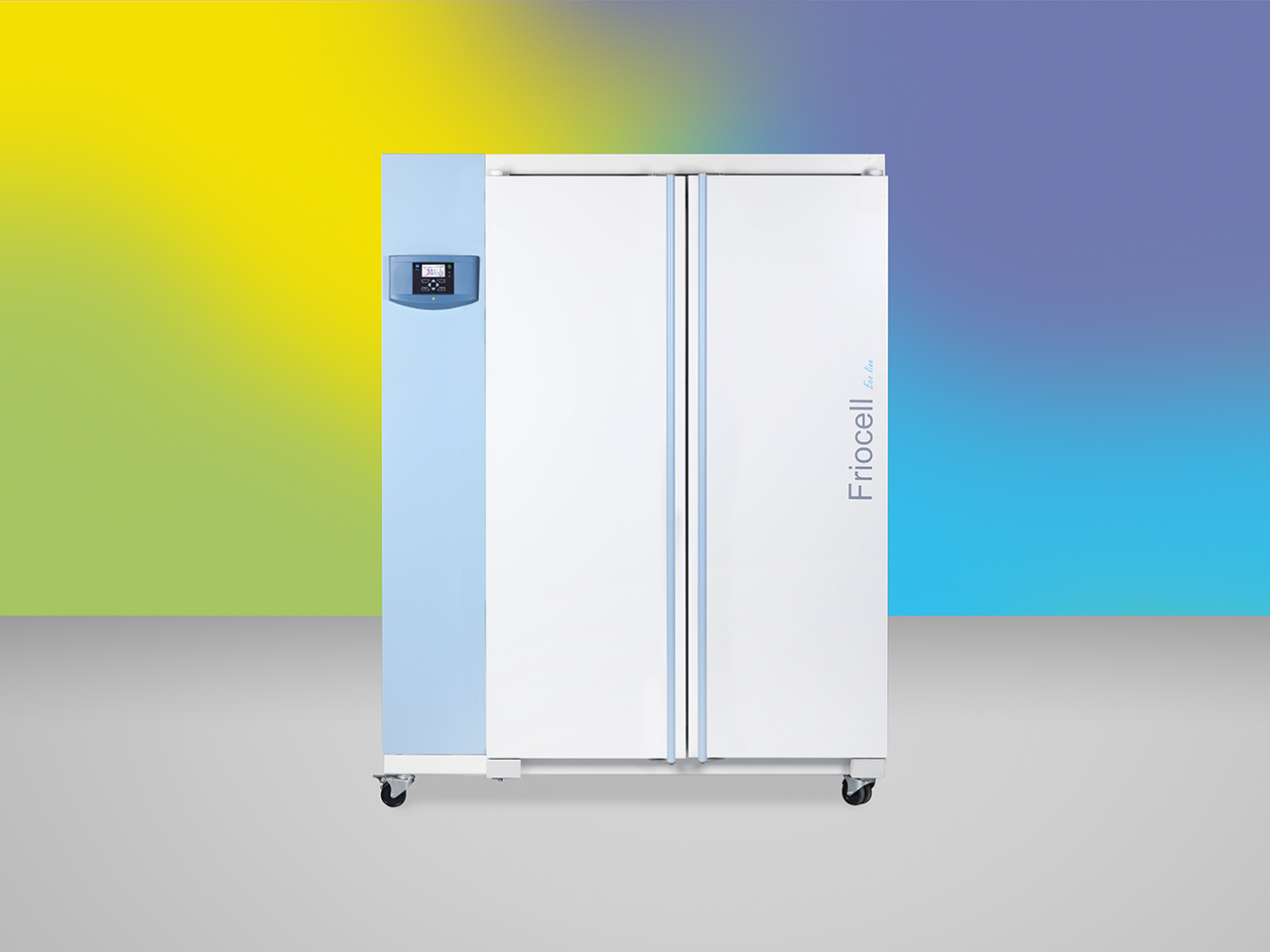

FRIOCELL 707 - ECO line

Laboratory drying ovens and incubators

FRIOCELL - Technical sheet

FRIOCELL EVO - Leaflet

Online support software WarmComm

WarmComm software

• Notice
  Product images are for illustrative purposes only and may differ from the actual product.
• Safety thermostat class according to DIN 12880 (user adjustable)
  Separate measuring circuit protecting the process in case of failure of the main control circuit.



• Stainless steel tray
  AISI 304 stainless steel tray for optimal air circulation



• Stainless steel shelf, perforated
  Perforated shelf made of stainless steel AISI 304, suitable for placing a small sample in the chamber. The perforated shelf replaces the tray.



• Chamber without tray holders and without trays
  Can only be used in combination with some options (higher chamber load capacity, loading system, frame, 316 L)
  (except the volume 1212)



• Test tubes holder (Loewenstein)
  Special holders for test tubes in a diagonal position, typically for TBC testing. The holders are placed on ordinary trays.



• Test tube shelf Ø 16 mm
  Special holders for test tubes Ø 16 mm stored in a vertical position



• Test tube shelf Ø 22 mm
  Special holders for test tubes Ø 22 mm stored in a vertical position



• Drip tub
  Welded stainless steel tub for collecting condensate from samples in the chamber



• Suspension system for samples under the chamber ceiling
  Suspension system for longer samples (e.g. hoses) for hanging under the ceiling of the chamber for easier drying



• Left door
  Door hinges on the left. The cabinet with a volume of 22, 404, 707 and 1212 liters is not supplied in the left version.



• Door lock (same key for order)
  Mechanical door lock for the basic level of protection. It is supplied with two keys.



• Door lock (different keys for order)
  Mechanical door lock for the basic level of protection. It is supplied. Within one set of devices, different lock inserts are distinguished.



• Automatic door lock
  The device is equipped with an electromagnetic mechanism for blocking-locking the door. Can be operated manually or automatically.



• Stainless steel shell
  Stainless steel design of the device housing, including the handle made of stainless steel AISI 304.



• Stainless steel interior DIN 1.4404/AISI 316L
  Optional chamber design in stainless steel AISI 316 with higher chemical resistance
  (consultation required)



• Flexible PT sensor
  Additional movable sensor in the chamber for measuring the temperature at the sample or in the sample. It is not used for temperature control. The additional sensor data is shown on the display as an additional temperature value.(max. 1 pc)



• Flexible PT sensor lead from the inner side of the door
  Additional movable sensor from the door for measuring the temperature at the sample or in the sample. It is not used for temperature control. The additional sensor data is shown on the display as an additional temperature value. (max. 1 pc)
  (consultation required)



• Access port Ø 25 mm R (centre / centre)
  The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 25 mm located on the right in the middle of the wall.



• Access port Ø 25 mm L centre/centre)
  The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 25 mm located on the left in the middle of the wall.
  (except the volume 404, 707, 1212)



• Access port Ø 50 mm R (centre / centre)
  The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 50 mm located on the right in the middle of the wall.



• Access port Ø 50 mm L (centre / centre)
  The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 50 mm located on the left in the middle of the wall.
  (except the volume 404, 707, 1212)



• Access port Ø 100 mm R (centre / centre)
  The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 100 mm located on the right in the middle of the wall.



• Access port Ø 100 mm L (centre / centre)
  The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Ø 100 mm located on the left in the middle of the wall.
  (except the volume 404, 707, 1212)



• Access port - special shape or position
  The port with a stainless steel body allows the wires, sensors, etc. to be threaded into the chamber. Optional size, shape or position in the wall.
  (consultation required)



• Window and interior lighting (max. up to 250°C)
  Panoramic window with three-layer insulating glass enabling observation of samples in the chamber, complemented by mechanically switchable heat-resistant lighting of the chamber. With CLC, FC EVO, the lighting can also be switched electronically.
  (consultation required)



• Interior lighting (no window)
  Heat-resistant interior lighting with mechanical switch. With the CLC, FC EVO, the lighting can also be switched on electronically, or when the door is opened.



• Special housing modification for insulator technologies
  Soubor mechanických úprav přístroje pro těsné připojení k laboratornímu izolátoru.
  (consultation required)
  (except the volume 1212)



• Exhaust chimney
  Additional stainless steel chimney for extracting odors from the device. (for connection of fine suction - may affect thermohomogeneity)
  (consultation required)



• Modification of the device with castors for adjustable feet
  Adaptation of the device with castors to adjustable legs for greater stability.
  (except the volume 55, 111, 222)



• Modification of the device without castors to castors
  Adaptation for devices without castors to a device with castors for easier movement.
  (except the volume 404, 707, 1212)



• Castors with extendable feet (levelling castors)
  Adaptation of the device to adjustable castors for travel and greater stability.



• Increased load capacity / reinforced chamber frame + built-in frame
  Reinforcement of the device chamber and addition of a built-in frame with its own shelves to increase the load capacity of the device.
  (consultation required)



• Increased load capacity of shelves
  Special reinforced sheet metal shelves.



• Increased load capacity of the chamber bottom
  Reinforcement of the chamber bottom to increase the load-bearing capacity of the chamber sides.
  (consultation required)



• Device table
  Mobile table in the design of the device for greater flexibility incl. shelf for storing documents.
  (except the volume 111, 222, 404, 707, 1212)



• Open door alarm
  Door open notification, opening time can be set.



• RAMPS
  Programming function allowing to set the rate of temperature rise in °C/min. Only for ECO PLUS and EVO. The ramp can be set as standard or aggressive. More in the Instructions for use.



• Aggressive heating
  Service functions allowing to increase or decrease start times. This function can change the properties of the device.



• ECO PLUS
  The optional extension for Eco devices expands the number of segments from 2 to 8 for one program and allows temperature ramps to be defined within the program.



• Internal socket max. 100°C (230 V, 3 A protection, IP67)
  Programmable waterproof socket inside the chamber for connecting appliances.



• Potential-free contact (BMS) – remote alarm 24V/1A
  The potential-free contact is connected to a connector, to which a voltage of up to 24 V / 1 A can be connected to it in the rear leg. It is used to implement a remote alarm (in Anglo-Saxon countries it is referred to as BMS relay - Building Management System relay), which is interrupted by a built-in potential-free contact relay, the fault information is transmitted to rooms other than the one in which the temperature box is located. The relay opens and switches on in all error states reported on the display.



• Emergency stop button
  Hardware main switch with a lockable system, which, if necessary, interrupts the connection of electric power.
  (consultation required)



• National design of the electric plug
  Power supply termination according to the national standard
  (consultation required)



• Operation temperature shift
  Different operating temperature range. (-10 °C)



• Possibility of flash disk connection as an external data logger
  The data logger requires the device to be equipped with a USB HOST interface, details in the Instructions for use of the device. It allows to record the time course of all measured quantities during the program run on the connected large-capacity USB device (FAT32 format). The data is saved with the selected period in CSV format. Subsequently, they can be processed by MS Excel, Access, etc.



• Cooling with defrosting up to 0°C
  Compressor cooling system up to 0 °C with defrost for short (weeks) lower chamber temperatures.



• COOLING PLUS
  Compressor cooling system up to 0 °C with defrost for long-term (months) lower chamber temperatures.
  (except the volume 111, 1212)



• Strengthened cooling without defrosting (-10°C)
  Enhanced compressor cooling system without automatic defrost.



• Strengthened cooling with defrosting (-10°C)
  Enhanced compressor cooling system with automatic defrost.



• Enhanced COOLING PLUS (-10 °C)



• Exposition lighting VIS in the door
  VIS fluorescent lamp panel (with programmable intensity for EVO, for ECO only programmable switch-off) located in the door of the device.



• LED exposition lighting VIS in the door
  Panel of LED lights VIS (with programmable intensity for EVO, for ECO only programmable switch-off) located in the door of the device.



• Exposition lighting, shelves VIS
  Horizontal panel of VIS fluorescent lamps (with programmable intensity for EVO, for ECO only programmable switch-off) located in the chamber.
  (except the volume 55)



• Exposition lighting, shelves UV
  Horizontal panel of UV fluorescent lamps (with programmable intensity for EVO, for ECO only programmable switch-off) located in the chamber.
  (except the volume 55)



• Exposition lighting, shelves MIX
  Horizontal panel of VIS + UV fluorescent lamps (with programmable intensity for EVO, for ECO only programmable switch-off) located in the chamber.
  (except the volume 55)



• LED exposition lighting, shelves VIS
  Horizontal panel of LED VIS lights (with programmable intensity for EVO, for ECO only programmable switch-off) located in the chamber.
  (except the volume 55)



• Analogue output 4-20mA
  The device contains a converter of the required quantity (temperature) to a 4-20 mA output, connected to a connector connection. It is not a quantity read by the instrument itself and converted to 4-20 mA. The customer processes the value himself and must also ensure the calibration of the sensors. Data cannot be collected using WarmComm.



• Software Warmcomm 4 Basic (B)
  WarmComm 4 is designed to record the course of device control. The program uses the Server - Client arrangement. In this configuration, the monitored devices are connected to a Server that records and stores data obtained during control. Individual users then access this data through the Client. This arrangement can be implemented within one PC or within a local network.



• Software Warmcomm 4 Professional (P)
  WarmComm 4 is designed to record the course of device control. The program uses the Server - Client arrangement. In this configuration, the monitored devices are connected to a Server that records and stores data obtained during control. Individual users then access this data through the Client. This arrangement can be implemented within one PC or within a local network.



• Software Warmcomm 4 FDA (F)
  WarmComm 4 is designed to record the course of device control. The program uses the Server - Client arrangement. In this configuration, the monitored devices are connected to a Server that records and stores data obtained during control. Individual users then access this data through the Client. This arrangement can be implemented within one PC or within a local network.



• External printer
  Use the EPSON TM-T20III to print the report.



• Software PrinterArchiv
  The Printer Archive program is intended for recording from the machine's print output. Serves as a direct replacement for a physical printer. The recording is in a fixed, preset format. wider options for handling the recorded protocol, including archiving or printing to a desktop PC printer. Ordinary PCs with Windows XP and higher operating software can handle the hardware requirements. One free RS 232 (COM) port is required for each connected device. The maximum length of the connecting cable is 15 m. For more detailed HW requirements, please contact your dealer.



• Internal temperature measurement, 1 point
  Validation of the temperature distribution in the chamber at the user's reference temperature (1 point).



• Measurement of temperature distribution, 3 points
  Validation of the temperature distribution in the chamber at the user's reference temperature (3 points).



• Temperature measurement, 9-point (DIN 12880)
  Validation of the temperature distribution in the chamber at the user's reference temperature (9 points).



• Temperature distribution measurement, 27-point (DIN 12880)
  Validation of the temperature distribution in the chamber at the user's reference temperature (1 point).



• Validation documentation
  IQOQ documentation for implementation during installation at the customer.



• Ethernet communication port for ECO
  Optional equipment extends the communication capabilities of Eco devices with Ethernet.
