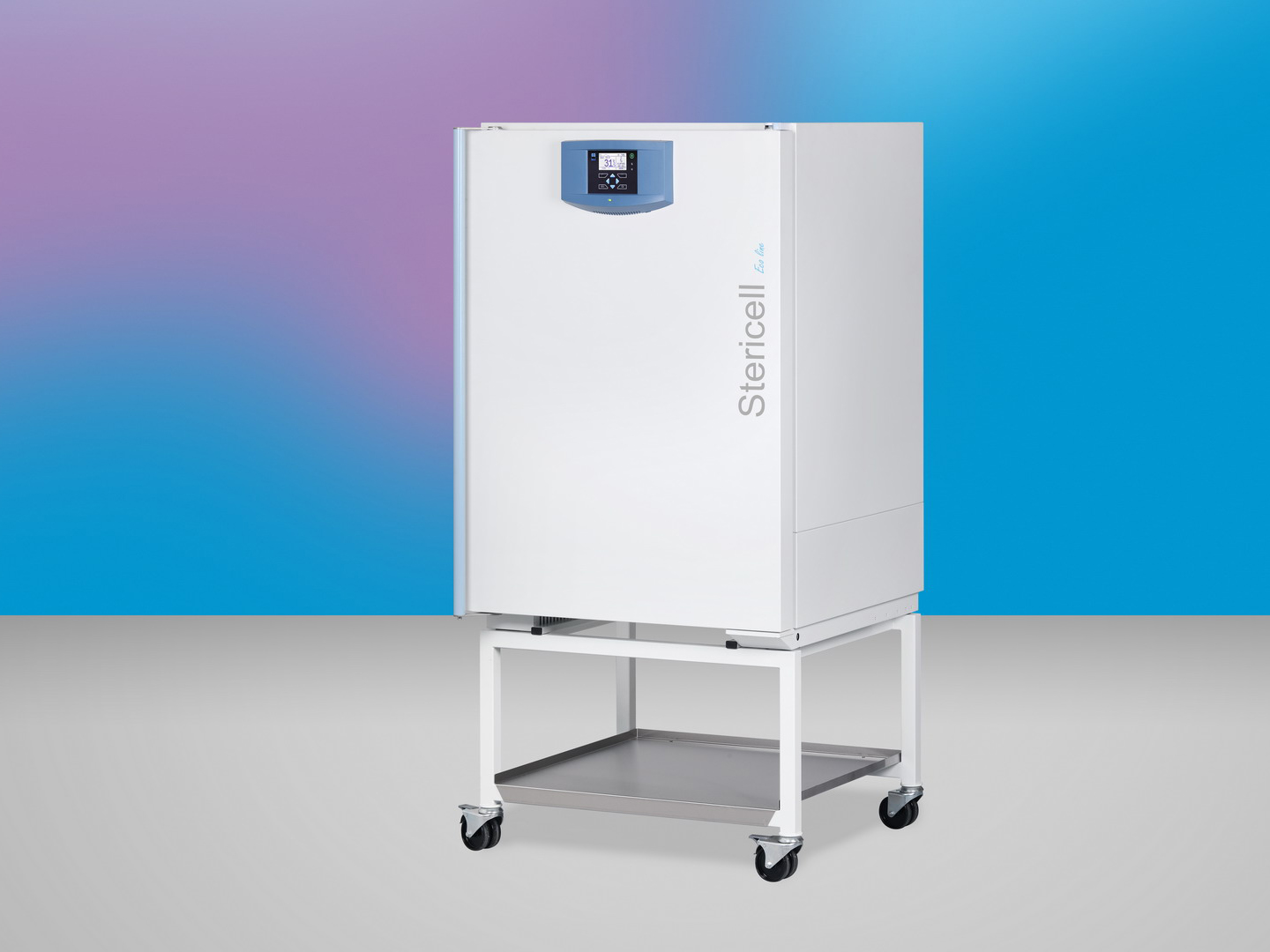

STERICELL 222 ECO

Product images are for illustrative purposes only and may differ from the actual product.
  • hot air sterilizer – it meets medical device criteria
  • chamber volume 222 litres
  • temperature range from 10°C above ambient to 250°C
  • features quiet operation with a fine forced airflow system in the chamber using a built-in fan that eliminates the 'cold air' areas
  • high operation comfort, precise temperature and time control, three fixed sterilization programs
  • suitable for hot-air sterilization in medical workplaces for laboratory purposes, it can also be used as a drying drying oven
  • design with microprocessor control system Fuzzy logic, control elements placed on a foil keyboard, process information displayed on LED display
  • wide selection of optional equipment and accessories
  • output for connecting a printer or PC
  • possibility of validation (IQ, OQ)
I am interested in STERICELL 222 ECO
Technical parameters

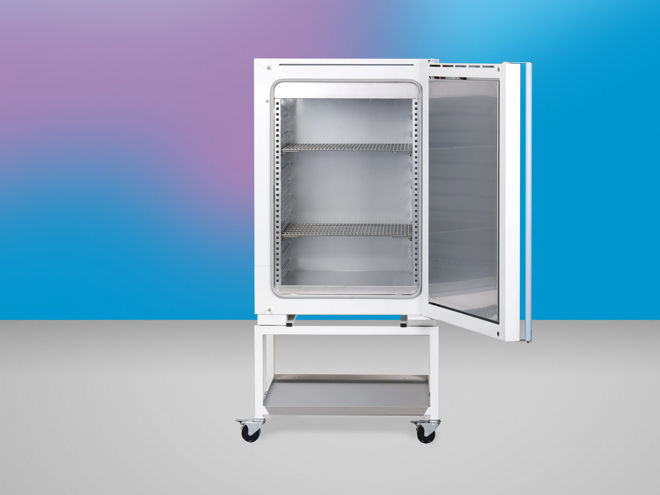

Interior of stainless steel material No. 1.4301

volume 222 l
depth 540 mm
width 540 mm
height 760 mm

Tray

standard equipment 2 pcs
storage area (w × d) 520 × 485 mm
racks 10 max. number
distance between guide rails 70 mm

Maximal weight of the load *)

inside the oven 70 kg/oven
per tray 30 kg/tray

Number of doors

1 pcs

External dimensions (including door and handle)

depth 790 mm
diameter of the air branch outer/inner 52/49 mm
width 760 mm
1090 (N)

Package dimensions (three layers carton)

depth 860 mm
width 830 mm
depth 1280 mm

Weight

gbrut 116 kg
nett 100 kg

Working temperature (beginning of the regulation)

from 10 °C above ambient temp. to °C 250 °C

Heat emission at 250 °C

990 W

Air exchange speed at 250 °C

24 cca/hour

Electricity - mains 50/60 Hz

max. power 1,9 kW
nominal voltage 230 V
current 8,3 A
stand by 5 W

*) Approx. 50 % of the tray area can be filled in a way a uniform air circulation is enabled inside the chamber. Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.

Changes in the design and make reserved.
The values may differ depending on specific charge and media parameters.
